CL-2079 Series

Product Code: CL-2079 Series
Stock 2-3 Days
$0.00

Product Description


Architertural LED Fixture CL-2079 is Designed with a Pyramid Top and includes geomet-ric lines that overlap an opal acrylic lens. This fixture is avail-able in three different sizes to best suit desired specifications. CL-2079 is commonly installed in exterior locations such as: Hotels, Restaurants, Public Transportations Facilities and Other Commercial Areas.-10year or 10,000 Hour Limited Warranty
Features:
  • 120/277 Multi-volt
  • UL listed for damp and wet locations
  • Kelvin: 30K, 40K or 50K
  • High efficient Lumined LED`s

Construction :
  • Housing is Heavy Gauge Aluminum material.
  • Frosted Acrylic Lens (Standard)
  • Multiple Finishes to choose (See Ordering Guide)
Cat #
  • CL-2079 Small (CL-2079S)
  • CL-2079 Medium (CL-2079M)
  • CL-2079 Large (CL-2079L)

Wattage
Color Temp.
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)

Voltage
  • 120-277V(MV)

Finish
  • Matte Black (MBLK)
  • Glossy Black (GBLK)
  • Texture Black (TBLK)
  • Texture White (TWHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)

Mounting
  • Post Top(PT)
  • Wall Mount(AM)
  • Sconce(SCN)

Options
  • Button Photocell(PC)
  • Micro Wave Sensor(MWS)
  • Emergency
  • Batt. Pack(EMR)
  • Opal Acrylic Lens(OAL)

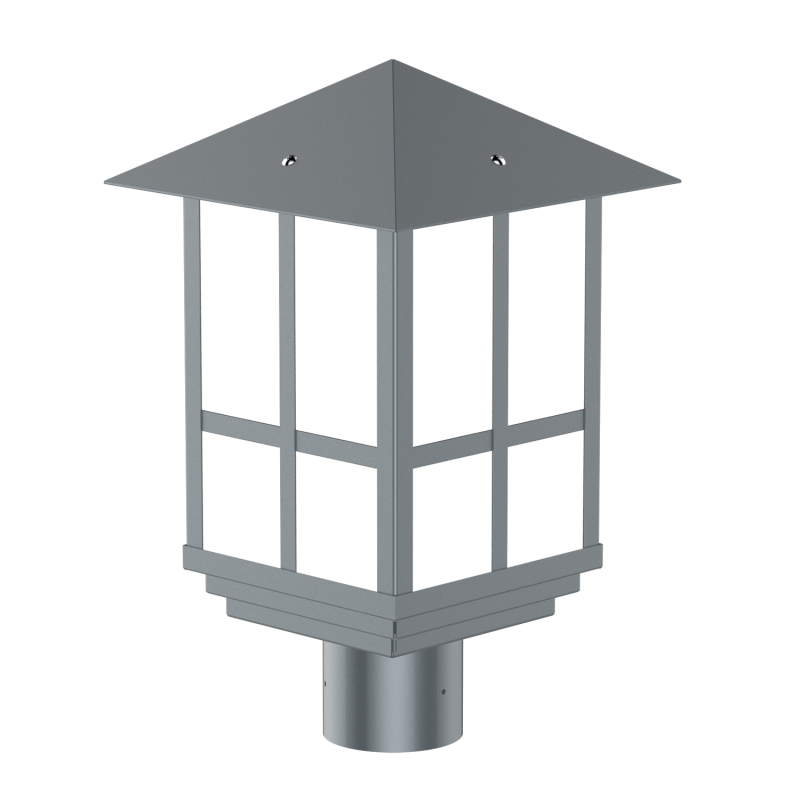

 Post Top
Cat# : CL-2079S
  • A : 12”
  • B : 8”
Cat# : CL-2079M
  • A : 14”
  • B : 10”
Cat# : CL-2079L
  • A : 16”
  • B : 12”
Arm Mount
Cat# : CL-2079S
  • A : 12”
  • B : 8”
  • C : 12” 3/4
Cat# : CL-2079M
  • A : 14”
  • B : 10”
  • C : 14” 3/4
Cat# : CL-2079L
  • A : 16”
  • B : 12”
  • C : 16” 3/4

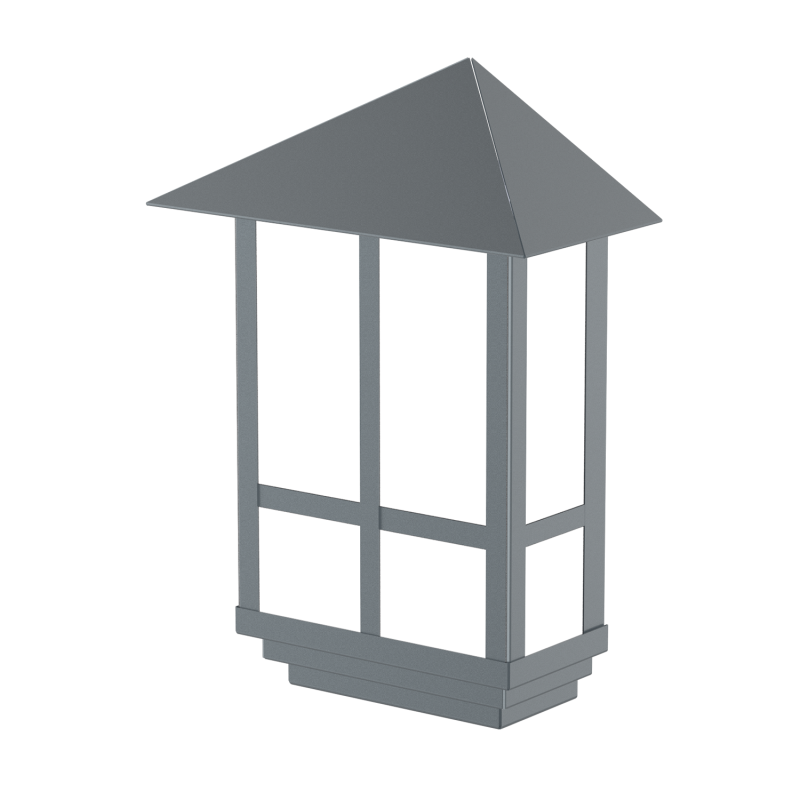

Sconce
Cat# :
CL-2079S
  • A : 12”
  • B : 8”
  • C : 4”
Cat# : CL-20749M
  • A : 14”
  • B : 10”
  • C : 5”
Cat# : CL-2079L
  • A : 16”
  • B : 12”
  • C : 6”
Cat# : CL-2079S-5CLED
  • Input Power : 10W
  • Lumen Output : 918
  • LPW : 183
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-2079S-10CLED
  • Input Power : 15W
  • Lumen Output : 1,914
  • LPW : 191
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-2079S-15CLED
  • Input Power : 20W
  • Lumen Output : 2754
  • LPW : 183
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-2079S/M-20CLED
  • Input Power : 25W
  • Lumen Output : 2,935
  • LPW : 146
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-20749M/L-30CLED
  • Input Power : 35W
  • Lumen Output : 4842
  • LPW : 161
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-2079M/L-35CLED
  • Input Power : 40W
  • Lumen Output : 5320
  • LPW : 152
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
Cat# : CL-2079M/L-40CLED
  • Input Power : 45W
  • Lumen Output : 6252
  • LPW : 156
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
