CLP-330FAL

Product Code: CLP-330FAL
Stock 2-3 Days
$0.00

Product Description

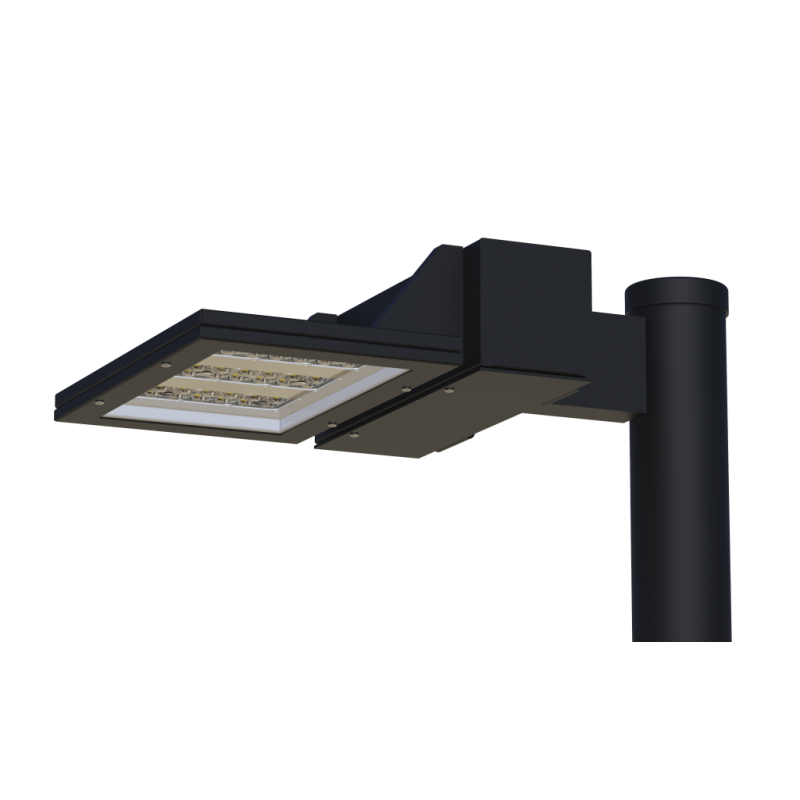

Area LED FixtureCLP-330FAL, LED Area or Flood Fixture, Suitable for wet locations. Perfect for lighting up Residential Exteriors, Walkways, Entry Ways, Perimeters, Storage Areas, Parking Garages, School Campuses, Industrial/Commercial Spaces, Wall Washer, Parking Lots, and Recreational parks. This fixture has a wide light distribution.                       - 10 year/100,000 hour limited warranty.
  • Housing is heavy-duty Aluminum.
  •  3 mil. Powder Coat Finish
  • Type 2,3,4 and 5 Clear Optic (Clear Tempered Lens on Flood light Slip Fitter and Swivel Bracket option).
  • Silicone Gasket to prevent leakage and provide weather-tight protection.
CLP-330FAL-S   up to 60W (8,839lms)
CLP-330FAL-M up to 150W (20,680lms)
CLP-330FAL-L   up to 300W (41,360lms)
Cat#
WattageLight Dist.
  • Type 2 (T2)
  • Type 3 (T3)
  • Type 4 (T4)
  • Type 5 (T5)

Kelvin
  • 2700K (27)
  • 3000K (30)
  • 4000K (40)
  • 5000K (50)
  • 5700K (57)
  • 6500K (65)
VOLTAGE
  • Multi-Volt (mv)
  • 480V (HV)
Mounting
  • Arm Mount
  • 6" Extruded Arm (AE6)
  • 10" Extruded Arm (AE10)
  • Slip Fitter (SF)
  • Swivel Bracket (SB)
  • Large Yoke Mount (LYM)
  • 6" Extruded Arm Wall Mount (6EAWM)
OPTIONS
  • Motion Sensor (OCC)
  • Button Photo Cell (PC)
  • 5pin Photo Cell (5PC)
  • 7pin Photo Cell (7PC)
  • EMR. Battery (EMR)
  • Wireless Control (WC)
  • Wattage Adjuster (WA)
Dimensions
Cat# : CLP-330FAL-S
  • A : 5” 1/8
  • B : 15” 1/2
  • C : 12”
  • EPA : 0.6
Cat# : CLP-330FAL-M
  • A : 5” 1/8
  • B : 16” 1/4
  • C : 15” 3/4
  • EPA : 0.8
Cat# : CLP-330FAL-L
  • A : 5” 1/8
  • B : 23” 1/2
  • C : 20” 3/4
  • EPA : 1
Cat# : CLP-330FAL-SM-20CLED
  • Input Power : 25W
  • Lumen Output : 3,650
  • LPW : 146
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 100w MH
Cat# : CLP-330FAL-SM-30CLED
  • Input Power : 35W
  • Lumen Output : 5,222
  • LPW : 149
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 150w MH
Cat# : CLP-330FAL-SM-40CLED
  • Input Power : 45W
  • Lumen Output : 6,420
  • LPW : 162
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 175w MH
Cat# : CLP-330FAL-SM-60CLED
  • Input Power : 65W
  • Lumen Output : 8,539
  • LPW : 142
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 175w MH
Cat# : CLP-330FAL-MD-80CLED
  • Input Power : 85W
  • Lumen Output : 12,840
  • LPW : 151
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 250w HPS
Cat# : CLP-330FAL-MD-100CLED
  • Input Power : 105W
  • Lumen Output : 14,340
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 400w PSMH
Cat# : CLP-330FAL-MD-120CLED
  • Input Power : 125W
  • Lumen Output : 18,104
  • LPW : 144
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 400w HPS
Cat# : CLP-330FAL-MD-150CLED
  • Input Power : 155W
  • Lumen Output : 20,680
  • LPW : 133
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 400w HPS
Cat# : CLP-330FAL-LG-200CLED
  • Input Power : 205W
  • Lumen Output : 31,140
  • LPW : 151
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 750w PSMH
Cat# : CLP-330FAL-LG-250CLED
  • Input Power : 250W
  • Lumen Output : 36,125
  • LPW : 144
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 1000w MH
Cat# : CLP-330FAL-LG-300CLED
  • Input Power : 310W
  • Lumen Output : 41,360
  • LPW : 133
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 1000w HPS
