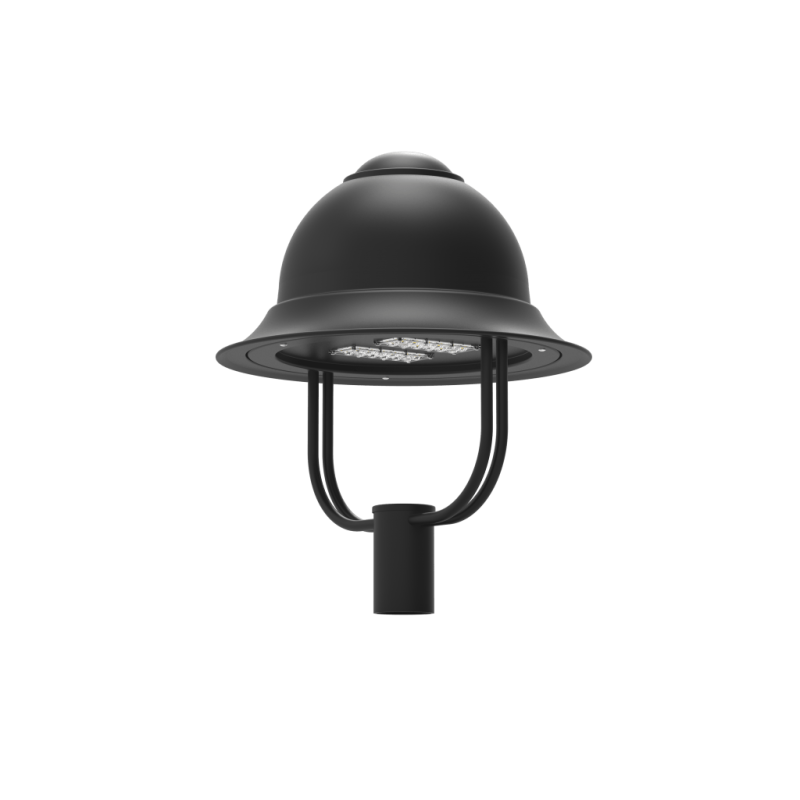

CLP-BELL

Product Code: CLP-BELL
Stock 2-3 Days
$0.00

Product Description


Architectural LED Fixture CLP-BELL LED Luminaire is ideal to illuminate  Residential,  Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, and any other Outdoor setting that is looking to create an inviting and sophisticated atmosphere.                 -10 year/100,000 hour limited warranty.
  • Housing is Heavy-Duty Spun Aluminum.
  • 3 mil. Powder Coat Finish
  • Optics Type 2,3,4 and Type 5 Clear Optic.
  • Silicone Gasket to prevent leakage and provide IP-66 Protection.
CLP-BELL-M up to 150W (19,098lms)
CLP-BELL-L up to 200W (26,686lms)Cat#TOP / SHADE
  • TOP
  • TOP1 (TP1)
  • TOP2 (TP2) (Yoke Mount Only)
  • TOP3 (TP3)

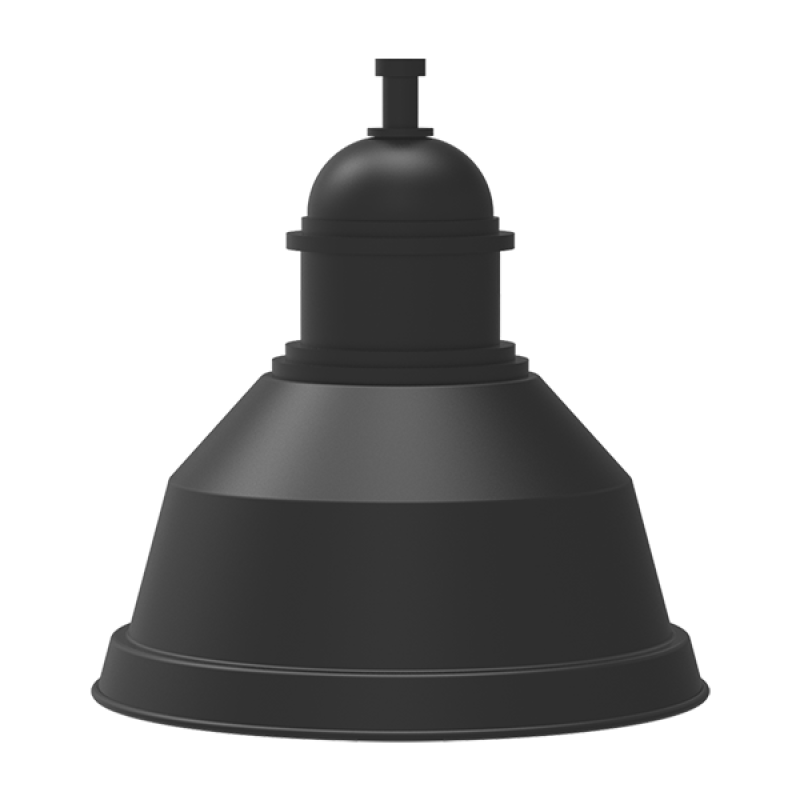

  • SHADES
  • SHADE 1 (SH1)
  • SHADE 2 (SH2)
  • SHADE 3 (SH3)
Mounting
  • ARM MOUNT (AM)
  • YOKE MOUNT (YM)
  • SIDE SLIP ARM (Over 2" 3/8 Arm) (SSA)
Type
  • Type 2 (T2)
  • Type 3 (T3)
  • Type 4 (T4)
  • Type 5 (T5)
WattageCOLOR Temp.
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
VOLTAGE
  • 120-277V (mv)
  • 480 (HV)
COLOR
  • BLACK (BLK)
  • WHITE (WH)
  • BRONZE (BRZ)
  • SILVER (SIL)
  • GARPHITE (GPH)
  • MARINE GRADE (MG)
OPTIONS
  • OCCUPANCY Sensor (OCC)
  • Button Photo Cell (PC)
  • Wireless Controls (WC)
  • House Side Shiels (HSS)
  • Wattage Adjuster (WA)

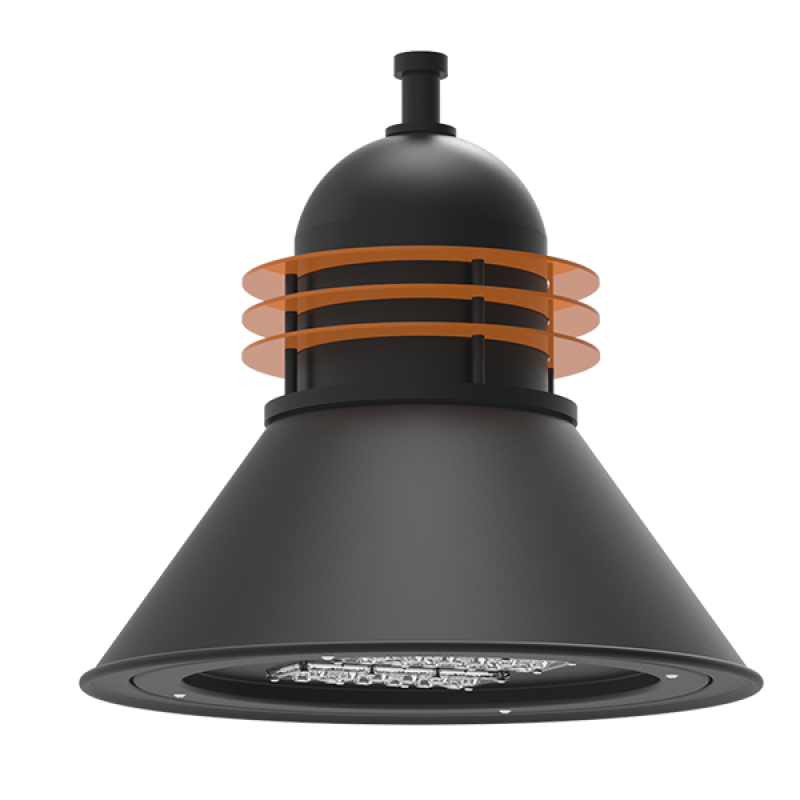

  • Decorative Ring (Top 3 Only) (DR)
AVERAGE EPA : CAT# : CLP-BELL-M-AM
EPA : 1.38CAT# : CLP-BELL-M-PT1-YM
EPA : 1.83CAT# : CLP-BELL-M-PT2-YM
EPA : 1.59CAT# : CLP-BELL-L-AM
EPA : 1.67CAT# : CLP-BELL-L-PT1-YM
EPA : 2.14CAT# : CLP-BELL-L-PT2-YM
EPA : 1.9Dimensions : CAT# : CLP-BELL-M-AM
  • A : 18”
  • B : 20”
CAT# : CLP-BELL-M-PT1-YM
  • A : 37” 3/8
  • B : 20”
CAT# : CLP-BELL-M-PT2-YM
  • A : 31” 7/8
  • B : 20”
CAT# : CLP-BELL-L-AM
  • A : 20”
  • B : 25”
CAT# : CLP-BELL-L-PT1-YM
  • A : 38” 7/8
  • B : 25”
CAT# : CLP-BELL-L-PT2-YM
  • A : 33” 3/
  • B : 25”
Cat# : CLP-BELL-M-40CLED
  • Input Power : 40W
  • Input Power : 5,504
  • LPW : 122
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 70w HPS
Cat# : CLP-BELL-M-50CLED
  • Input Power : 50W
  • Input Power : 6,880
  • LPW : 125
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 100w MH
Cat# : CLP-BELL-M-60CLED
  • Input Power : 60W
  • Input Power : 8,256
  • LPW : 127
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 150w PSMH
Cat# : CLP-BELL-M-80CLED
  • Input Power : 80W
  • Input Power : 9,590
  • LPW : 119
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 175w HPS
Cat# : CLP-BELL-M-100CLED
  • Input Power : 100W
  • Input Power : 12,306
  • LPW : 123
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 250W PSMH
Cat# : CLP-BELL-M-120CLED
  • Input Power : 120W
  • Input Power : 16,012
  • LPW : 133
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 310w HPS
Cat# : CLP-BELL-M-150CLED
  • Input Power : 150W
  • Input Power : 19098
  • LPW : 127
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 400w PSMH
Cat# : CLP-BELL-L-180CLED
  • Input Power : 180W
  • Input Power : 23429
  • LPW : 130
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 500WPSMH
Cat# : CLP-BELL-L-200CLED
  • Input Power : 200W
  • Input Power : 26686
  • LPW : 137
  • Color Temp (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • Input Frequency : 50/60HZ
  • HID Equivalent : 750WPSMH
