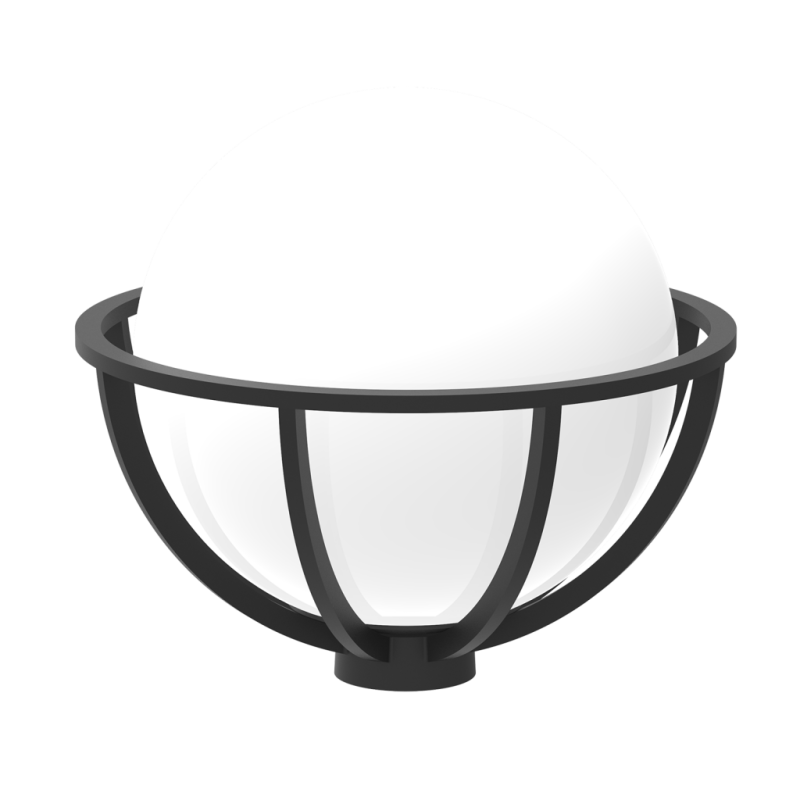

CLP-M56

Product Code: CLP-M56
Stock 2-3 Days
$0.00

Product Description


Architectural LED Luminaire The CLP-M56 differentiates from other LED Post top fixtures due to its creative shape and internal efficiency. CLP-M56 is essen-tial for illuminating Residential Exteriors, Walkways, Perimeters, School Campuses, Commercial Spaces, Parking Lots, and Recre-ational Parks. This fixture has various light distribution options. -10 year/50,000hr limited warranty.
Features :
  • Energy Savings: Over 66% compared to HID light sources
  • Improved lumen maintenance
  • Utilizes highly efficient Phillips Lumiled LED’s
  • Operating temperatures: -30°C ~ 60°C
  • Driver: Constant current, 120~277v, 50/60Hz, 480v (Optional)
  • Suitable for wet locations
  • 0-10 Dimming Driver, Occupancy Sensors, Photocell or Wireless Controls (Options)
  • Operating Life: >200,000 hours

Construction :
  • Housing is heavy-duty die-cast aluminum material
  • Powder coat finish (standard)
  • Frosted, Clear or Opal Acrylic Lens (Options)
  • Silicone gasket to prevent leakage and provide weather-tight protection.
  • Mounting: Over 3” OD Pole or Tenon, Adapter is required for other Poles sizes or shapes.
Cat #WattageLight Dist.
  • Symmetric(SYM)
Color Temp.
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
Voltage
  • 120-277V (MV)
  • 480V (HV)
Finish
  • Black (BLK)
  • White (WHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)
  • Custom (CST)

Mounting
  • 3” OD(3OD)
Options
  • Opal Acrylic Lens (OAL)
  • Frosted Acrylic Lens (FAL)
  • Clear Acrylic Lens (CAL)
Cat# : CLP-M56
  • A : 17” 1/2
  • B : 19” 3/8
  • C : 16”OD
  • EPA : 1.6
Cat# : CLP-M56-20CLED
  • Input Power : 25W
  • Lumen Output : 3,120
  • LPW : 156
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 100W MH
Cat# : CLP-M56-40CLED
  • Input Power : 45W
  • Lumen Output : 5,475
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage :  120-277V
  • HID Equivalent : 150W MH
Cat# : CLP-M56-60CLED
  • Input Power : 65W
  • Lumen Output : 8,784
  • LPW : 146
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 175W MH
