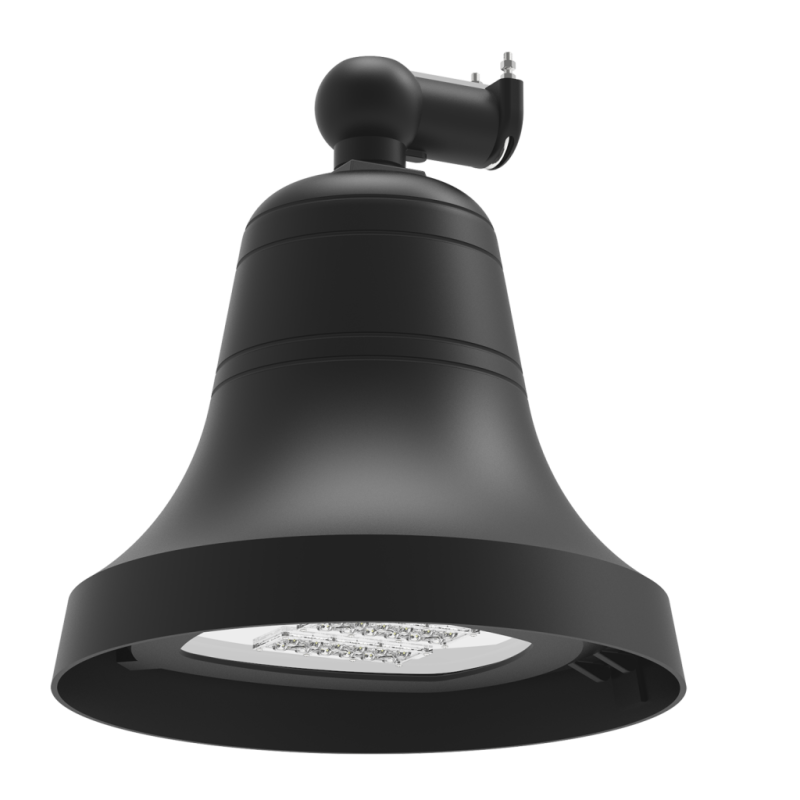

Mission-LED

Product Code: Mission-LED
Stock 2-3 Days
$0.00

Product Description


Street LED Luminaire Mission-LED Street LED Luminaire, ideal for street or municipal Lighting Projects, Pedestrian or Urban CentersMission-LED bring the latest LED Technology into Historical and Tradicional communities, Our cutting edge CL-Optical System provided excellent uniformity. Type 2, 3, 4 and 5, in 30K, 40K or 50K Color Temperature Available. -Dark Sky Friendly-10 year/100,000 hour limited warrantyFeatures :
  • Energy Savings: Over 66% compared to HID light sources
  • Improved lumen maintenance
  • Utilizes high efficient Lumiled LED’s
  • Operating temperatures: -30°C ~ 60°C
  • 10Kv Surge Protector (standard)
  • IP66 Rated
  • 0-10 Dimming Driver, Occupancy Sensors, Photo Cell, and Wireless Controls (Optional)
 Construction :
  • Housing is Heavy-Duty Cast Aluminum.
  • 3 Mils Powder Coat Finish
  • CL-Optic System (Standard)
  • Silicone Gasket to prevent leakage and provide weather-tight protection
  • Mounting: Mast Arm over 2”3/8 O.D Arm (See Arm Options)

Cat# : Mission-LED (MIS)Wattage :Light Dist. :
  • Type 2 (T2)
  • Type 3 (T3)
  • Type 4 (T4)
  • Type 5 (T5)
Color Temp. :
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
Voltage :
  • 120-277V (MV)
  • 480V (HV)
Finish :
  • Black (BLK)
  • White (WHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)
  • Custom (CST)
Mounting : Mast Arm (MA)Options :
  • Button
  • Photocell (PC)
  • Photocell Receptacle (PCR)
  • Photocell 7PIN (P7P)
  • Photocell 5PIN (P5P)
 CAT# : MIS
  • A : 21” 7/8
  • B : 25” 1/2
  • EPA : 2.3
CAT# : RWY-A48
  • A : 48”
  • B : 20”
  • SGL EPA : 1.35
  • DBL : 2.25
CAT# : RWY-A60
  • A : 60”
  • B : 22”
  • SGL EPA : 1.55
  • DBL : 2.65
CAT# : RWY-A72
  • A : 72”
  • B : 24”
  • SGL EPA : 1.75
  • DBL : 2.85
 Cat # : MIS-40CLED
  • Input Power : 45W
  • Lumen Output : 6,492
  • LPW : 162
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • HID Equivalent : 150W MH
Cat # : MIS-50CLED
  • Input Power : 55W
  • Lumen Output : 7,780
  • LPW : 155
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • HID Equivalent : 250W MH
Cat # : MIS-80CLED
  • Input Power : 85W
  • Lumen Output : 9,590
  • LPW : 119
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • HID Equivalent : 250W PSMH
Cat # : MIS-100CLED
  • Input Power : 105W
  • Lumen Output : 12,306
  • LPW : 123
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • HID Equivalent : 250W HPS
Cat # : MIS-120CLED
  • Input Power : 125W
  • Lumen Output : 16,012
  • LPW : 133
  • Color Temp. (CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Input Voltage : 120-277V
  • HID Equivalent : 400W MH
