Pulsar Series

Product Code: Pulsar Series
Stock 2-3 Days
$0.00

Product Description

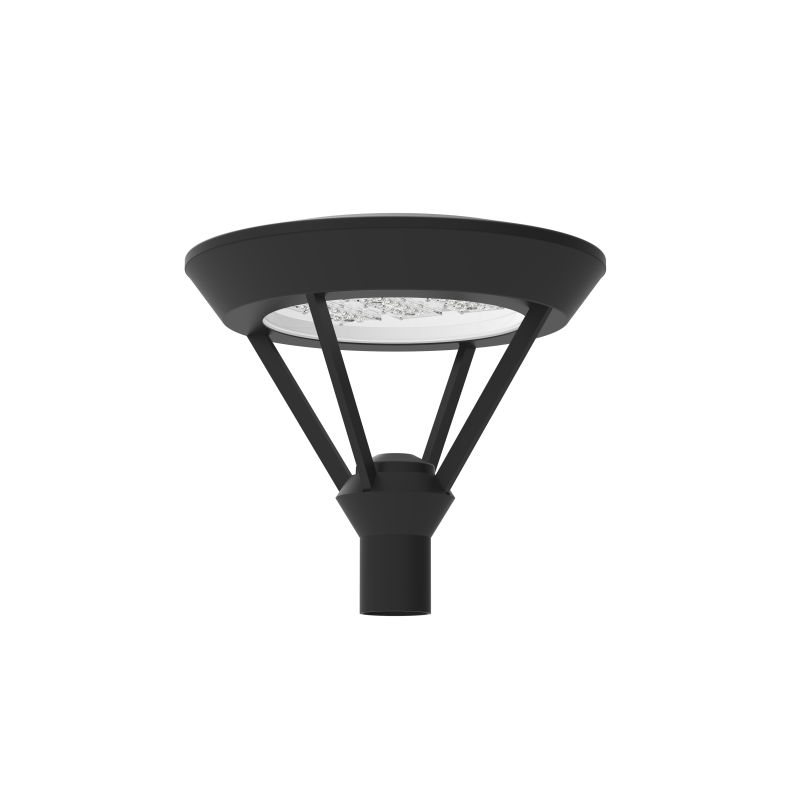

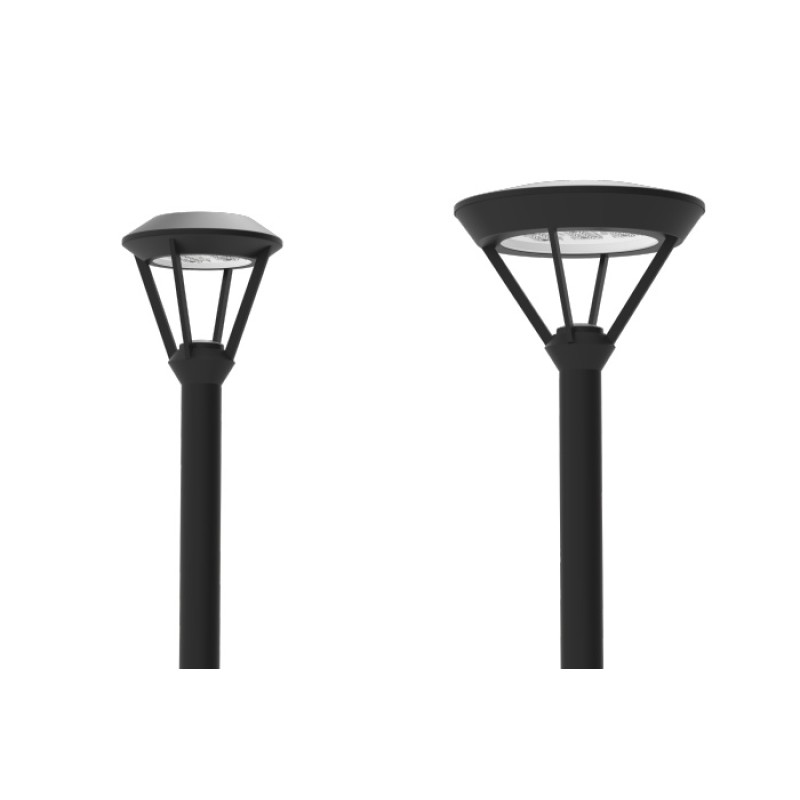

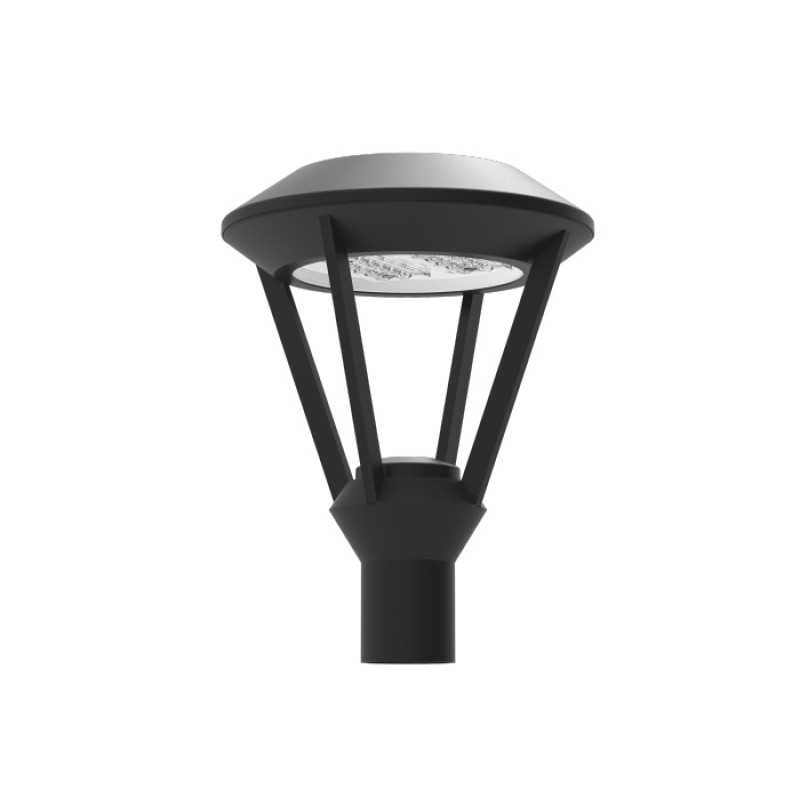

Architectural LED Luminaire PULSAR Architectural Light Post Mount Luminaire, suitable for wet locations. Perfect for lighting up Residential Exteriors, Walkways, Perimeters, School Campuses, Industrial/Commercial Spaces, Parking Lots, Recreational Parks.-Dark Sky compliant-10 Year /100,000 warranty.
FEATURES:
  • Energy Savings: Over 66% compared to HID light sources
  • Improved lumen maintenance
  • Utilizes high efficient Lumiled LED’s
  • Operating temperatures: -30°C ~ 60°C
  • Driver: Constant current, 120-277v or, 480v (Optional)
  • 10Kv Surge Protector. (standard)
  • 0-10V Dimming, occupancy sensors, photo cell or wireless controls (optional)

CONSTRUCTION:
  • Housing is Heavy Duty Aluminum Spun.
  • 3 mil Powder Coat Finish.
  • Clear Optics System.
  • Silicone Gasket to prevent leakage and provide Weather-Tight Pro-tection.
  • Mounting: over of a 3” O.D Tenon or Pole (standard). Adapter is Required for other mounting sizes
Cat #
  • Pulsar S (PLSR-S)
  • Pulsar I (PLSR-I)
  • Pulsar II (PLSR-II)
WattageLight Dist.
  • Type 2 (T2)
  • Type 3 (T3)
  • Type 4 (T4)
  • Type 5 (T5)
Color Temp.
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
Voltage
  • 120-277V (MV)
  • 480V (HV)
Finish
  • Black (BLK)
  • White (WHT)
  • Silver (SLR)
  • Bronze (BRZ)
  • Graphite (GPH)
  • Custom (CST)
Mounting
3”OD Standard (T3R)Options
  • Motion Sensor (OCS)
  • Button Photo Cell (PC)
  • Wireless controls (WC)
  • House Side Shield (HSS)
Cat# : PLSR-S
  • A : 16”
  • B : 21”
  • EPA : 0.75
Cat# : PLSR-I
  • A : 20”
  • B : 21”
  • EPA : 0.9
Cat# : PLSR-II
  • A : 24”
  • B : 21”
  • EPA : 1.18
Cat# : PLSR-S-20CLED
  • Input Power : 25W
  • Lumen Output : 3,650
  • LPW : 182
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 70W MH
Cat# : PLSR-S-40CLED
  • Input Power : 45W
  • Lumen Output : 6,492
  • LPW : 162
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 150W HPS
Cat# : PLSR-S-50CLED
  • Input Power : 55W
  • Lumen Output : 7,780
  • LPW : 155
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 150W MH
Cat# : PLSR-S-60CLED
  • Input Power : 65W
  • Lumen Output : 8,539
  • LPW : 142
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 175W PSMH
Cat# : PLSR-I-70CLED
  • Input Power : 75W
  • Lumen Output : 9,986
  • LPW : 142
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 250W MH
Cat# : PLSR-I-80CLED
  • Input Power : 85W
  • Lumen Output : 12,984
  • LPW : 155
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 250W HPS
Cat# : PLSR-I-100CLED
  • Input Power : 105W
  • Lumen Output : 15,561
  • LPW : 155
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 400W MH
Cat# : PLSR-II-150CLED
  • Input Power : 155W
  • Lumen Output : 23,340
  • LPW : 145
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 400W PS
Cat# : PLSR-II-180CLED
  • Input Power : 185W
  • Lumen Output : 28.01
  • LPW : 155
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 500W MH
Cat# : PLSR-II-200CLED
  • Input Power : 200W
  • Lumen Output : 31,120
  • LPW : 155
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 750W PSMH
