Stealth

Product Code: Stealth
Stock 2-3 Days
$0.00

Product Description

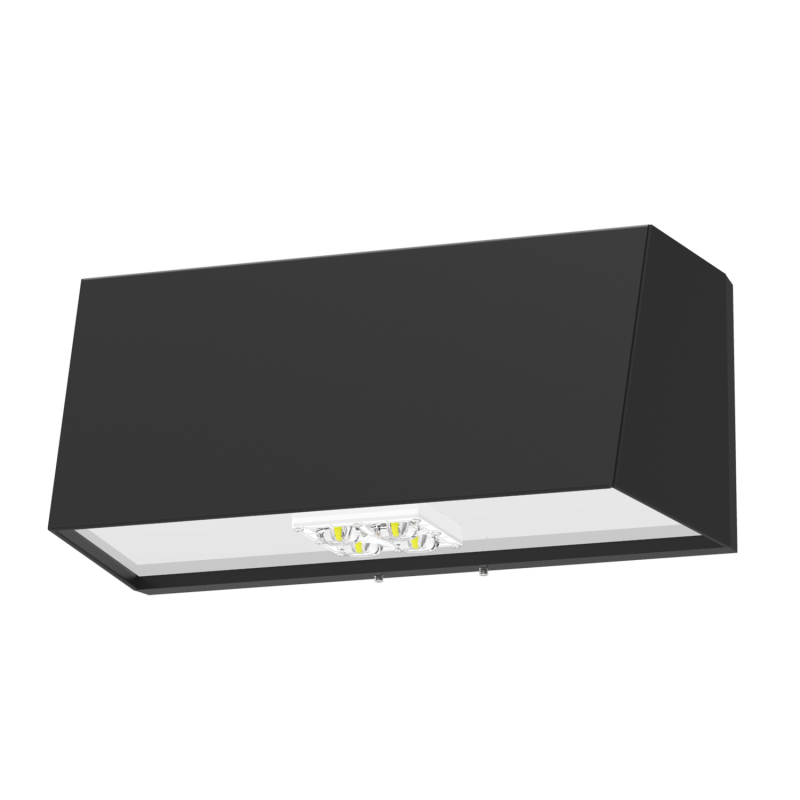

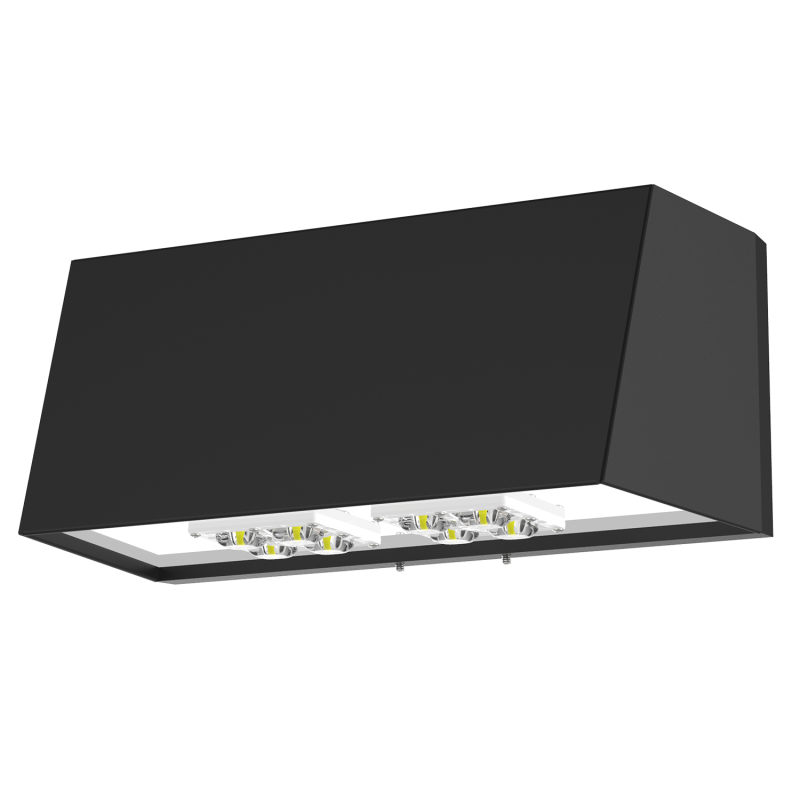

Stealth Full Cut Off LED Wall Pack Fixture, Suitable for wet locations, Perfect for lighting up Residential Exteriors, Walk-ways, Entry Ways, Perimeters, Parking Garages, School Cam-puses, Industrial/Commercial Spaces.-Dark sky compliant and up light option.-10 year/100,000 hour limited warranty.
Featureas :
  • Energy Savings: Over 66% compared to HID light sources
  • Improved lumen maintenance
  • Utilizes high efficient Lumiled LED’s
  • Operating temperatures: -30°C ~ 60°C
  • Driver: Czonstant current, 120-277v, 50/60Hz, 480v (Optional)
  • Suitable for wet locations.
  • 0-10 Dimming Driver, Occupancy Sensors or PhotoCell, Emergency Battery Pack(Optional)

Construction :
  • Housing is heavy-Duty Aluminum
  • 3 Mil Powder Coat Finish.
  • Clear Optical System
  • Silicone gasket to prevent leakage and provide weather-tight protection.
  • Mounting: Over 4˝ “J” Box.

Cat# : Stealth II (STH-II)Wattage : Light Dist. :
  • Type 2 (T2)
  • Type 3 (T3)
  • Type 4 (T4)
  • Type 5 (T5)
Color Temp. :
  • 3000K (30K)
  • 4000K (40K)
  • 5000K (50K)
Voltage :
  • 120-277V (MV)
  • 480V (HV)
Finish :
  • Black (BLK)
  • White (WH)
  • Bronze (BRZ)
  • Silver (SIL)
  • Graphite (GPH)
  • Custom (CST)
Options :

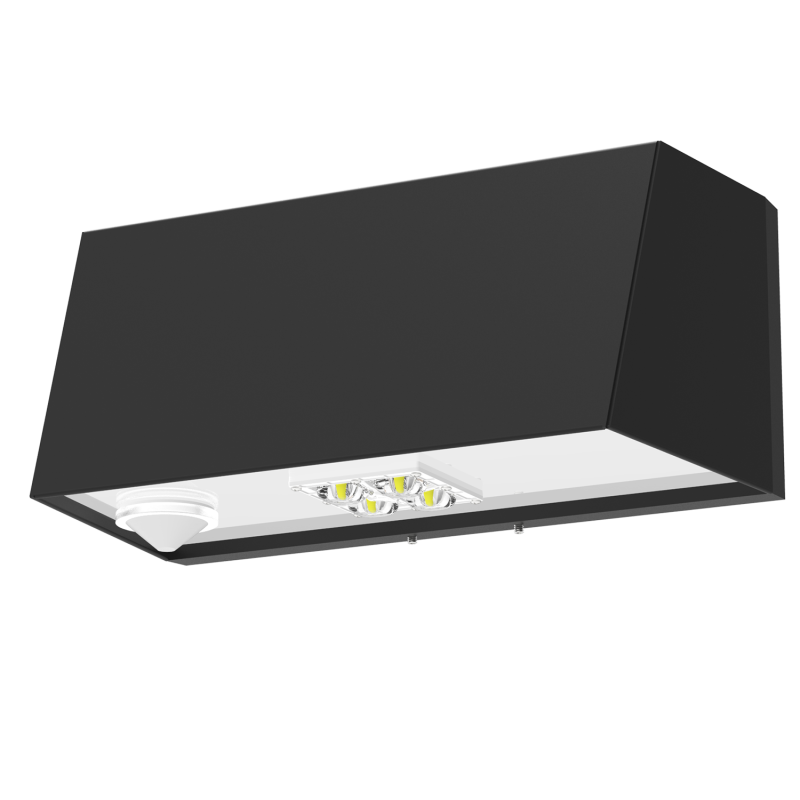

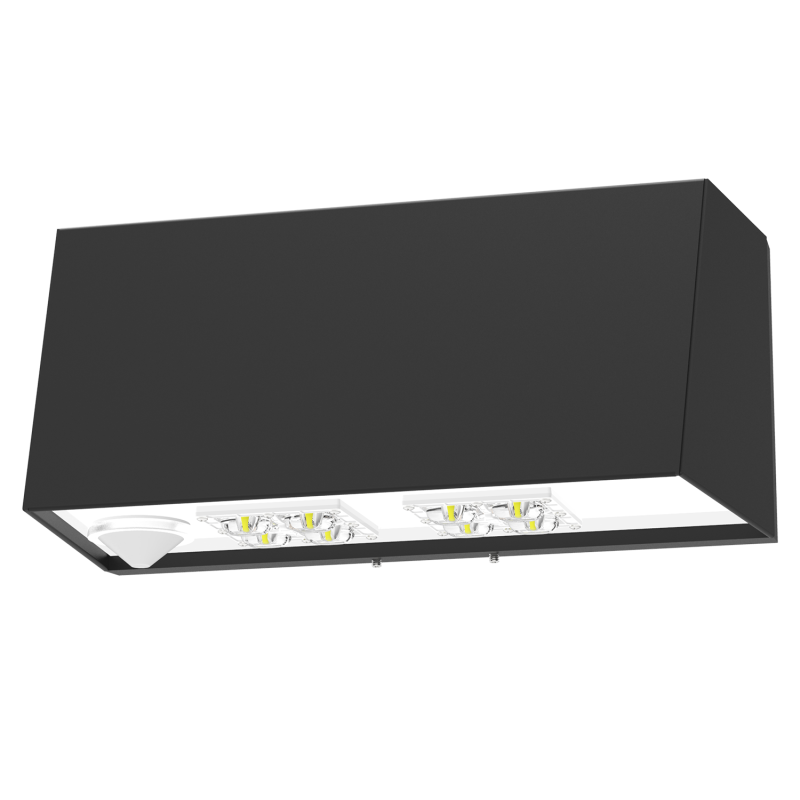

  • Motion  Sensor (OCC)
  • Emergency Batterry Pack (EMR)
  • Button Photo Cell (PC)
  • Wireless controls (WC)
Dimensions :
Cat# : STH-II
  • A : 7.5
  • B : 8” 7/8
  • C : 17
  • EPA : 0.88
Cat# : STH-II-20CLED
  • Input Power : 25W
  • Lumen Output : 2958
  • LPW : 147
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 70W MH
Cat# : STH-II-40CLED
  • Input Power : 45W
  • Lumen Output : 5449
  • LPW : 136
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 150W HPS
Cat# : STH-II-50CLED
  • Input Power : 55W
  • Lumen Output : 6589
  • LPW : 131
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 150W MH
Cat# : STH-II-60CLED
  • Input Power : 65W
  • Lumen Output : 9625
  • LPW : 160
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 175W PSMH
Cat# : STH-II-80CLED
  • Input Power : 85W
  • Lumen Output : 11938
  • LPW : 149
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 250W MH
Cat# : STH-II-100CLED
  • Input Power : 105W
  • Lumen Output : 14042
  • LPW : 140
  • Color Temp.(CCT) : 5000K
  • CRI : 70+
  • Rated Life (L70) : >200,000
  • Imput Voltage : 120-277V
  • HID Equivalent : 400W PSMH
