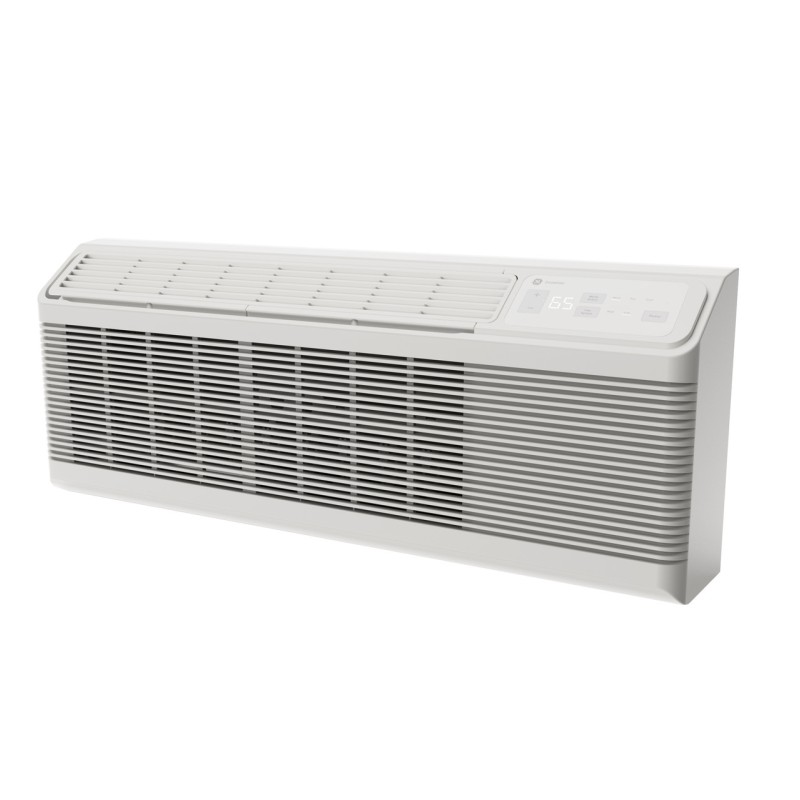

GE Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt AZES12DCXXA
Product Description
Features :
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25°F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
ABOUT THIS PRODUCT :
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25°F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
SPECS & DETAILS :
ACCESSORIES
- Accessories Required for Installation : RAB42 - Wall Case
APPEARANCE
- Color Appearance : Grey White
CAPACITY :
- CFM Indoor Fan High : 410
- CFM Indoor Fan Low : 275
- Cooling BTUH (MAX) : 12100
- Cooling BTUH (MIN) : 12,000 Btu
- Cooling EER (BTUH / Watt) : 11.6/11.7
- Dehumidification (pts./hr.) : 3.3 (High Speed)
- Vent CFM (high fan at zero ESP) : 33
FEATURES :
- Central Desk Control Compatibility : Yes
- Chassis Type : Slide-In
- Control Type : Tactile touch pad with LED Display
- Corrosion Treated : Yes
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
- Fan Speed Selections : Hi/Low Cooling
- Hi/Low Heating
- Hi/Low Fan Only
- Filter Type : Rigid Frame
- Slide-Out
- Heat - Cool : Yes
- Heating System : Electric Resistance
- Louver Style : Reversible
- Manual Vent Control : Hidden
- Power Factor : 98
- Product Type : Packaged Terminal Air Conditioners (PTAC)
- Refrigerant Type : R454B
- Rotary Compressor : Yes
- Sensible Heat Ratio : 60%
- Temperature Limiting : Electronic 7-Step
- Temperature Range : 60 - 85 F
- Vent Control : 3-position
- Venting Features : Concealed Manual Vent Control
- Vent Air Filter
- Outdoor Vent Control - 3 Positions
- Zoneline Features : "Smart Fan" Fan Cycle Control
- Random Twist/Length Segment Tangential Blower
- Weather Protected Electrical Components
- "Sleep" Mode
- Heat Sentinel
- Freeze Sentinel
- Automatic Indoor Frost Control
- Universal Heaters
- Auto Power Recovery
- Remote Thermostat Compatibility
- Central Desk Control Compatibility
- Proportional - Integral ID Airflow
POWER / RATINGS :
- Cooling - Amperes : 4.4/4.7
- Cooling - Amperes; F.L. - Cooling : 4.4/4.7
- Cooling - Amperes; L.R. : 29.5
- Cooling - Watts : 985/960
- Heating BTUH : NA
- Voltage (MAX) : 230 V
- Voltage (MIN) : 208 V
WARRANTY :
- Labor Warranty : Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Parts Warranty : Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Warranty Notes : See written warranty for full details
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 116 lb
- Net Weight : 106 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
