GE Zoneline Dry Air 25 Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
Product Description
About this Product :Energy efficiency : 12.1/12.1 EERQuiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfortElectronic touch controls with LED displaySimplified structure
Easy to maintain and service
Perfect for high humidity climates
Removes 20%-35% more moisture from the air than standard Zoneline air conditioners* (*Varies when comparing dehumidification rates of the 7,000/9,000/12,000 BTU base models to their dry air model counterparts)
- Cooling capacity : 9,400/9,300 BTU
- Dehumidification : 3.4 pints/hour
- Indoor fan CFM (high/low) : 370/280
- Fresh air vent CFM (fully open high fan) : 47
Specs & Details :
- Sensible Heat Ratio : 58%
- Chassis Type : Slide-In

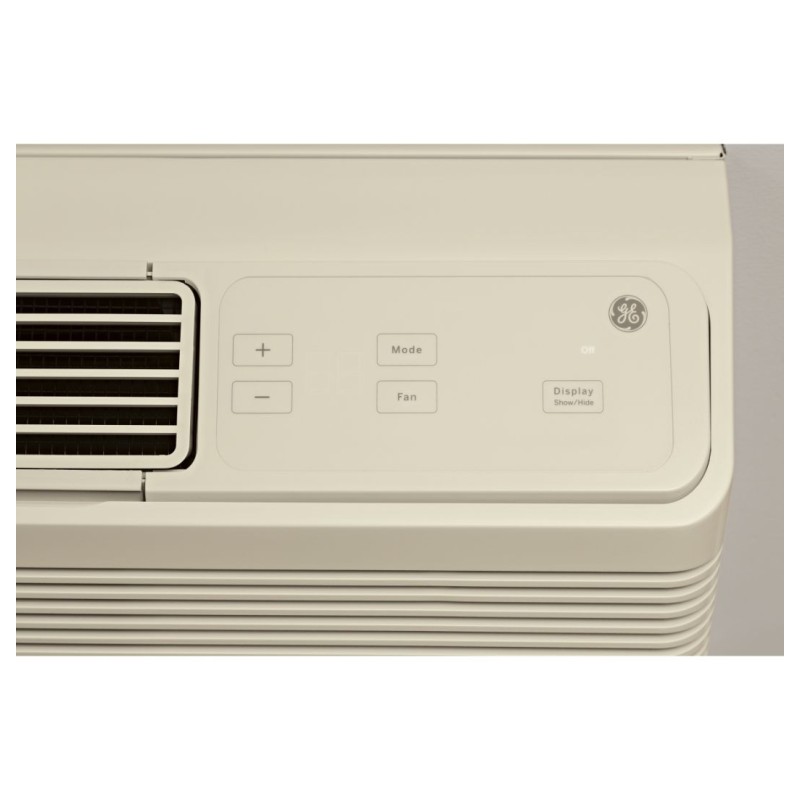

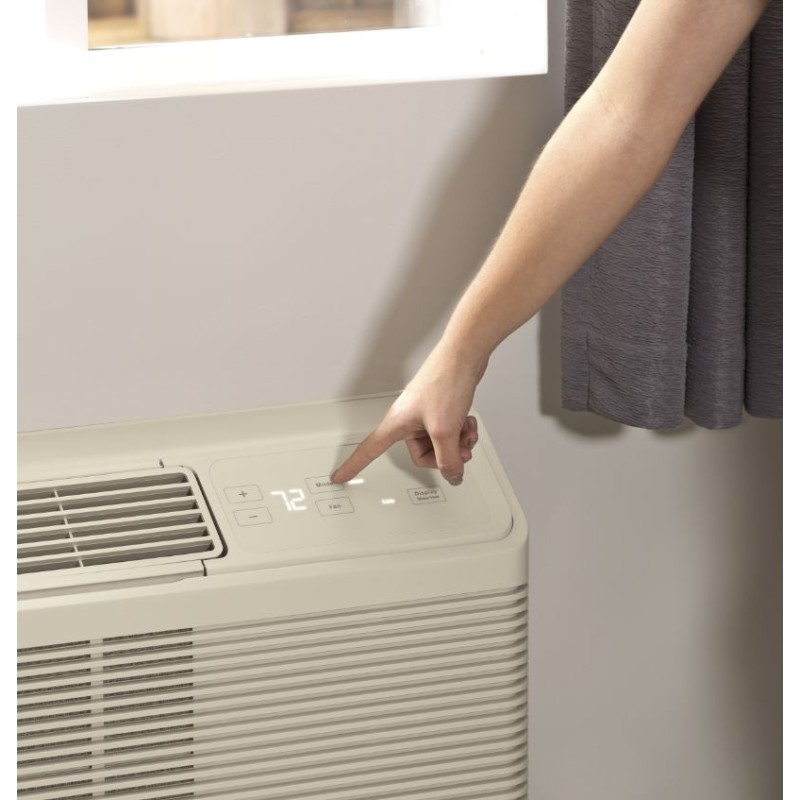

- Control Type : Coverless Backlit White LED Touch Controls
- Corrosion Treated : Yes
- Discharge Grille : 2-position
- Electronic Micro Computer Control : Yes
- Fan Cycle Switch : Yes
- Fan Motor : 2
- Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
- Rigid Frame
- Slide-Out
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions

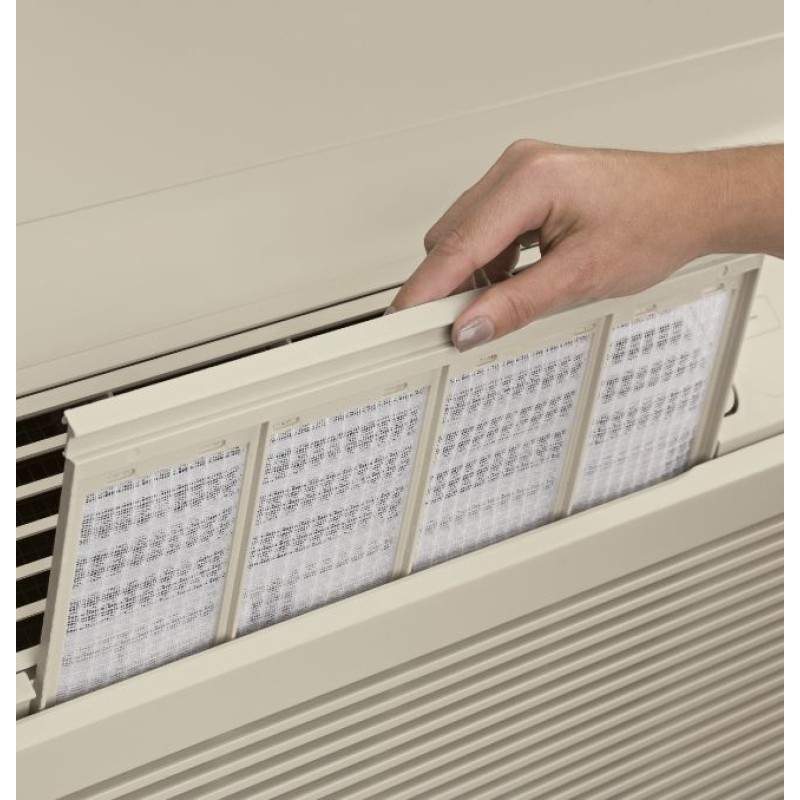

- Vent Air Filter
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- Auto Power Recovery
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 9300.0 Btu
- Cooling BTUH (MAX) : 9400.0 Btu
- Cooling EER (BTUH / Watt) : 12.1/12.1
- CFM Indoor Fan High : 370
- CFM Indoor Fan Low : 260
- Dehumidification (pts./hr.) : 3.4
- Vent CFM (high fan at zero ESP) : 44
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 3.5/3.8
- Cooling - Amperes; L.R. : 21.0
- Cooling - Watts : 775/765
- Power Factor : 97
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS :
- CUL
- UL
- AHRI
- NRCAN
- California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
