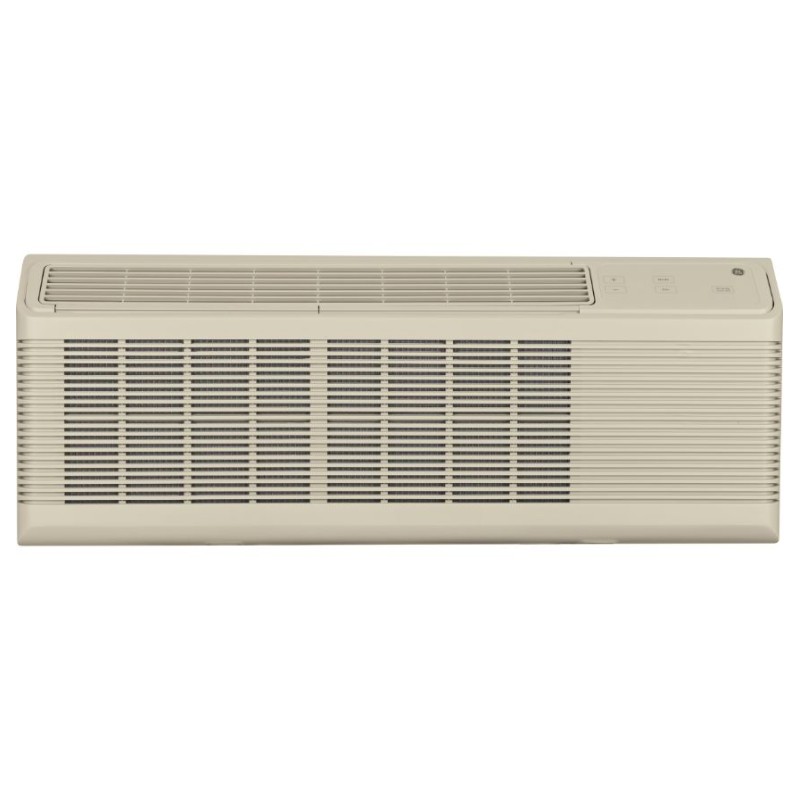

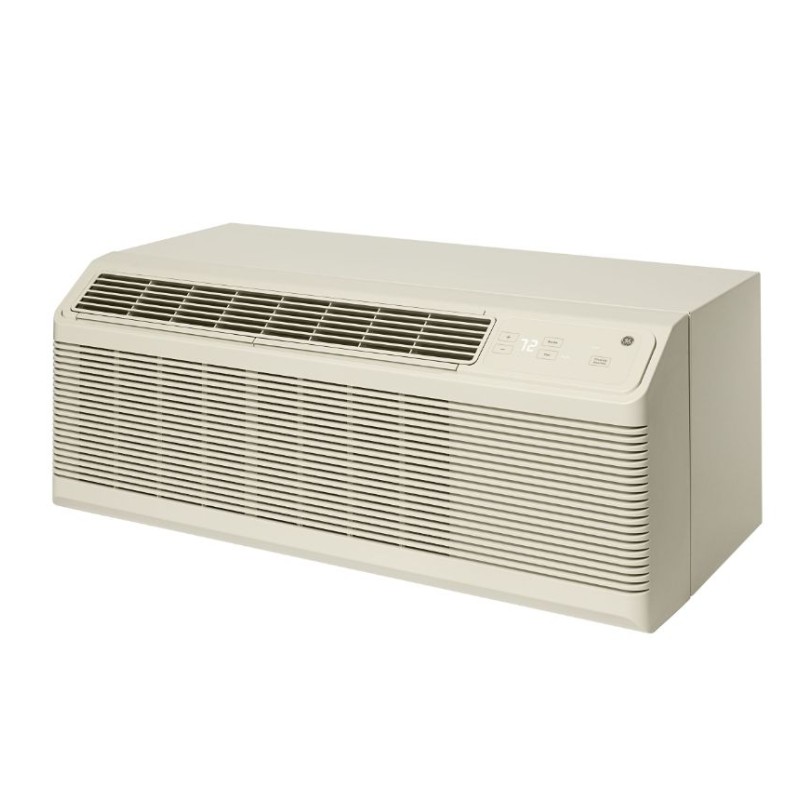

GE Zoneline Heat Pump Unit with Corrosion Protection, 230/208 Volt
Product Description
About this Product :Energy efficiency : 13.0/13.0 EERQuiet operation : Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

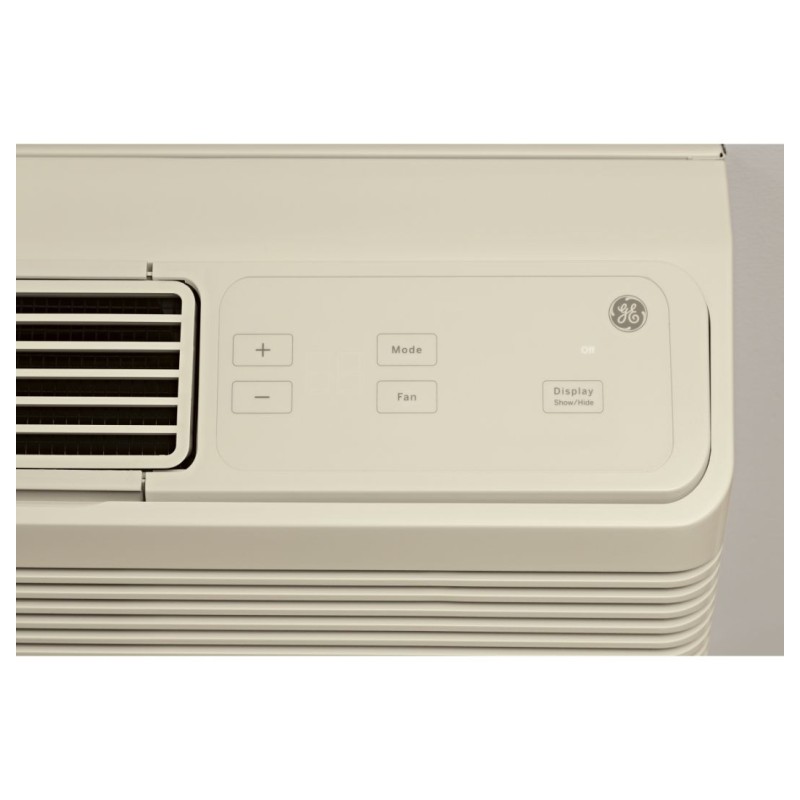

Electronic touch controls with LED display

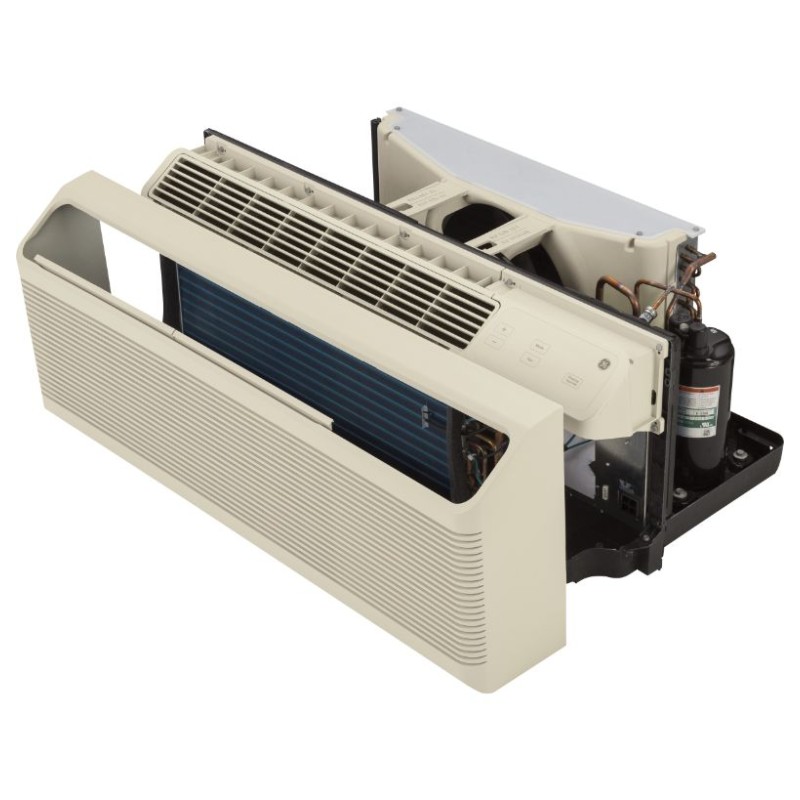

Simplified structure :
- Easy to maintain and service
- Cooling capacity
- 7,100/7,000 BTU
- Dehumidification
- 1.6 pints/hour
- Reverse heat cycle
- 6,200/6,100 BTU
- Heat pump efficiency
- 4.0/4.0 COP
- Indoor fan CFM (high/low)
- 409/250
Specs & Details :
- Sensible Heat Ratio : 73%
- Chassis Type : Slide-In
Control Type :
- Standard Microcomputer
- Tactile touch pad with LED Display
Corrosion Treated : Yes
Discharge Grille : 2-position
Electronic Micro Computer Control : Yes
Fan Cycle Switch : Yes
Fan Motor : 2
Fan Speed Control : Yes
Fan Speed Selections :
- Hi/Low Cooling
- Hi/Low Fan Only
- Hi/Low Heating
Filter Type :
- Rigid Frame
- Slide-Out
Heat - Cool : Yes
Louver Style : Reversible
Manual Vent Control : Hidden
Rotary Compressor : Yes
Temperature Limiting : Electronic 7-Step
Vent Control : 3-position
Venting Features :
- Concealed Manual Vent Control
- Outdoor Vent Control - 3 Positions
- Vent Air Filter
Zoneline Features :
- "Sleep" Mode
- "Smart Fan" Fan Cycle Control
- 3-Stage Heating Design
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Heat Pump with Supplemental Resistance Heat
- Heat Sentinel
- LCDI Power Cord
- Proportional - Integral ID Airflow
- Quick Heat Recovery

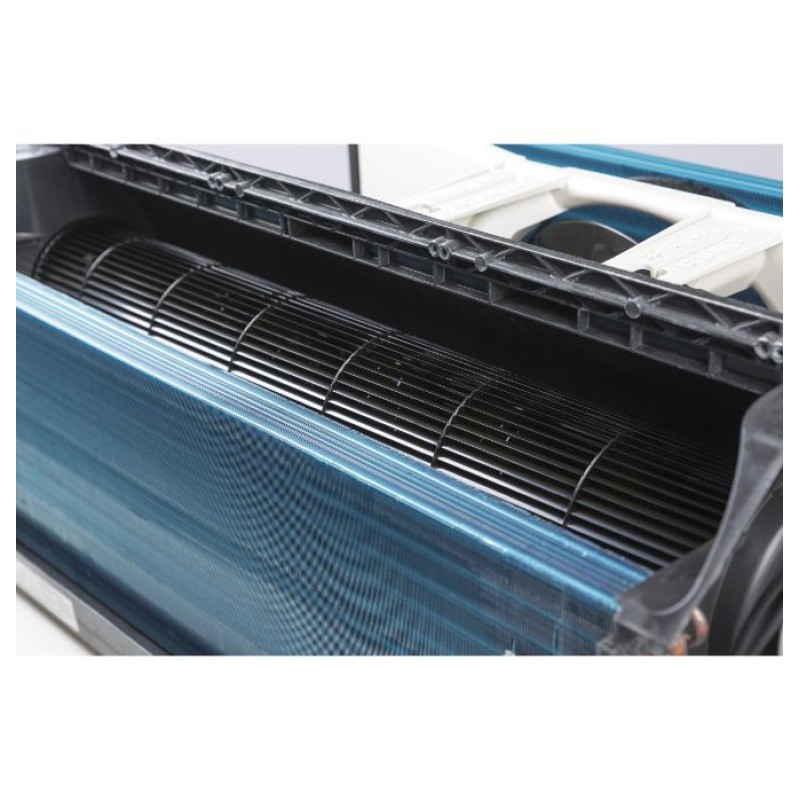

- Random Twist/Length Segment Tangential Blower
- Remote Thermostat Compatibility
- Reverse Cycle Defrost
- Universal Heaters
- Weather Protected Electrical Components
CAPACITY :
- Cooling BTUH (MIN) : 7000.0 Btu
- Cooling BTUH (MAX) : 7100.0 Btu
- Cooling EER (BTUH / Watt) : 13.0/13.0
- CFM Indoor Fan High : 360
- CFM Indoor Fan Low : 205
- Dehumidification (pts./hr.) : 1.6
- Heating - Reverse Cycle - BTUH : 6200/6100
- Vent CFM (high fan at zero ESP) : 38
WEIGHTS & DIMENSIONS :
- Approximate Shipping Weight : 110 lb
- Net Weight : 110 lb
- Overall Depth : 20 13/16 in
- Overall Height : 16 in
- Overall Width : 42 in
POWER / RATINGS :
- Cooling - Amperes; F.L. - Cooling : 2.5/2.7
- Cooling - Amperes; L.R. : 13.5
- Cooling - Watts : 545/535
- Heating - Reverse Cycle - Amps : 2.1/2.2
- Heating - Reverse Cycle - COP : 4.0/4.0
- Heating - Reverse Cycle - Watts : 450/445
- Power Factor : 96
- Voltage (MIN) : 208.0 V
- Voltage (MAX) : 230.0 V
CLAIMS & CERTIFICATIONS : California Prop 65
WARRANTY :
Parts Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
