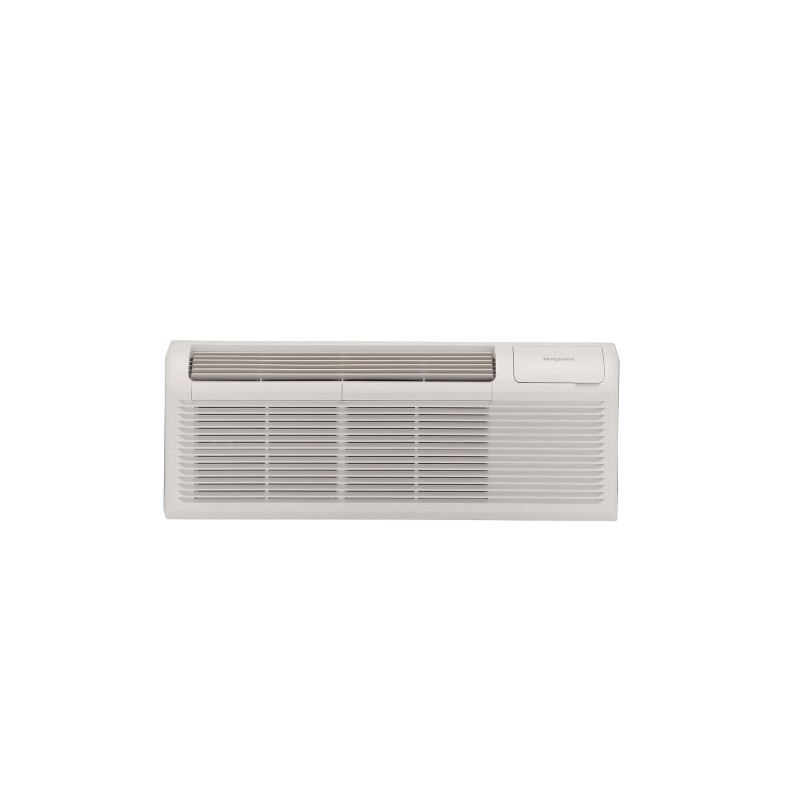

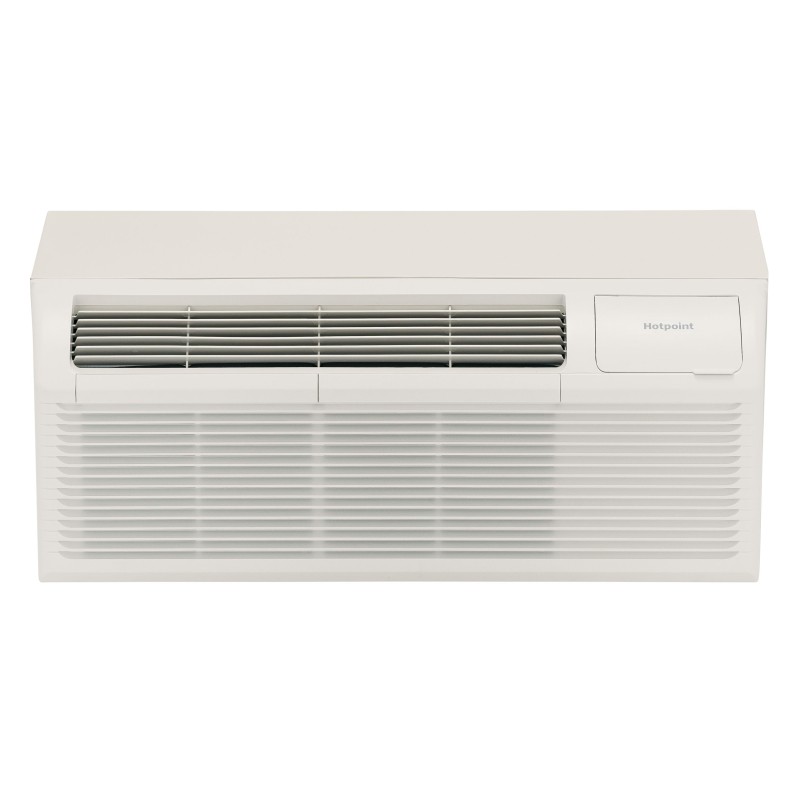

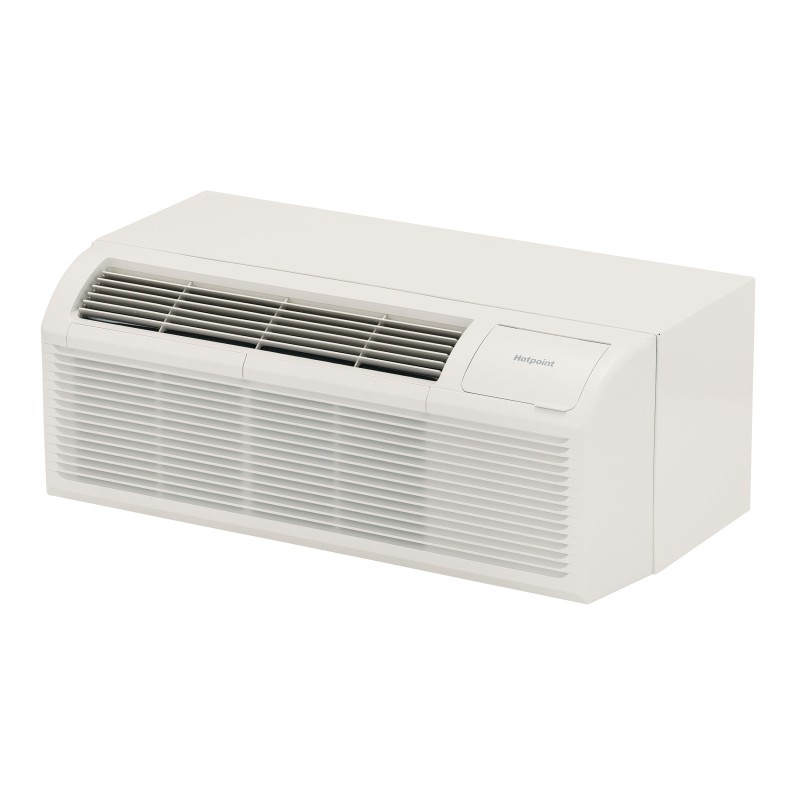

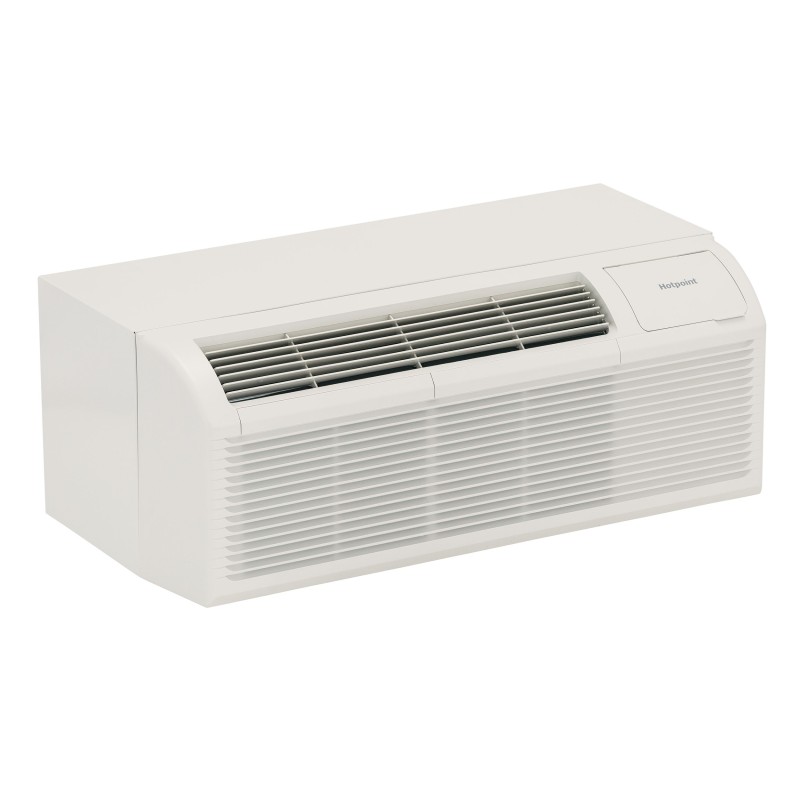

Hotpoint PTAC Heat Pump 230/208V, 20amp
Product Description
Overview
- 3-speed fan Give guests control over their comfort with three fan speeds to choose from
- 4-temperature limiting options Easily select one of four temperature ranges for peak efficiency and total customer comfort
- Freeze and frost protection Automatic freeze and indoor frost control keep units operating in peak condition
- Auto power recovery In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
- Self diagnostics Quickly and easily identify service needs with a nine-point diagnostic code system
- Automatic emergency heat Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode
- Backed by an industry leader With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
- Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

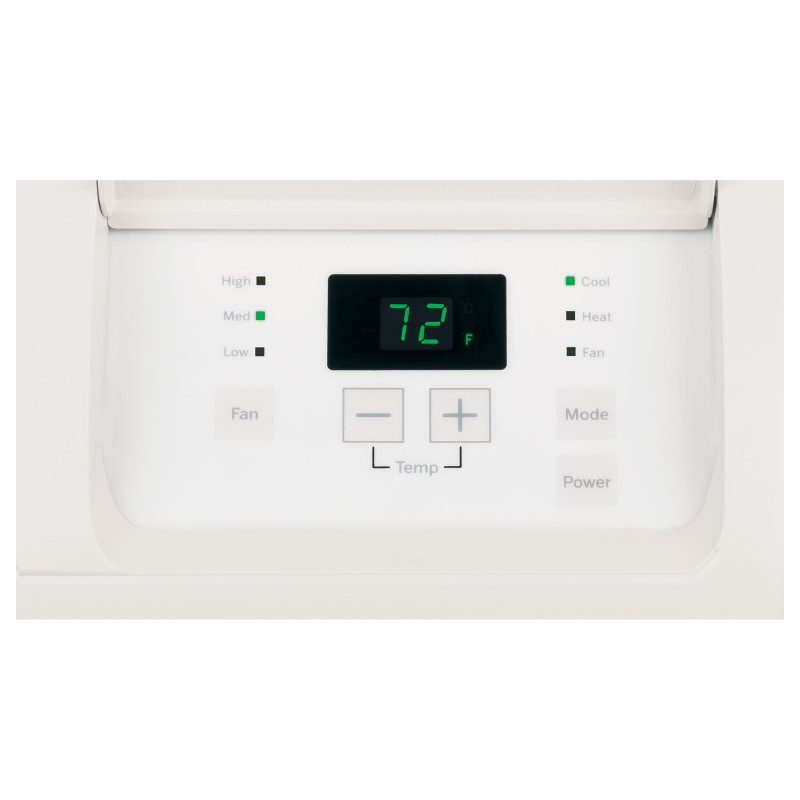

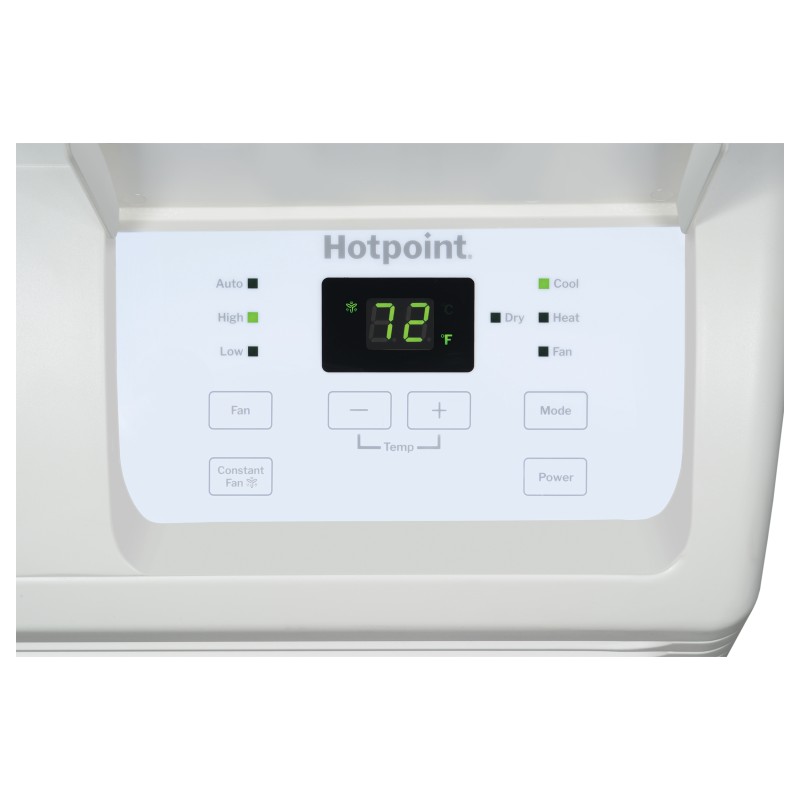

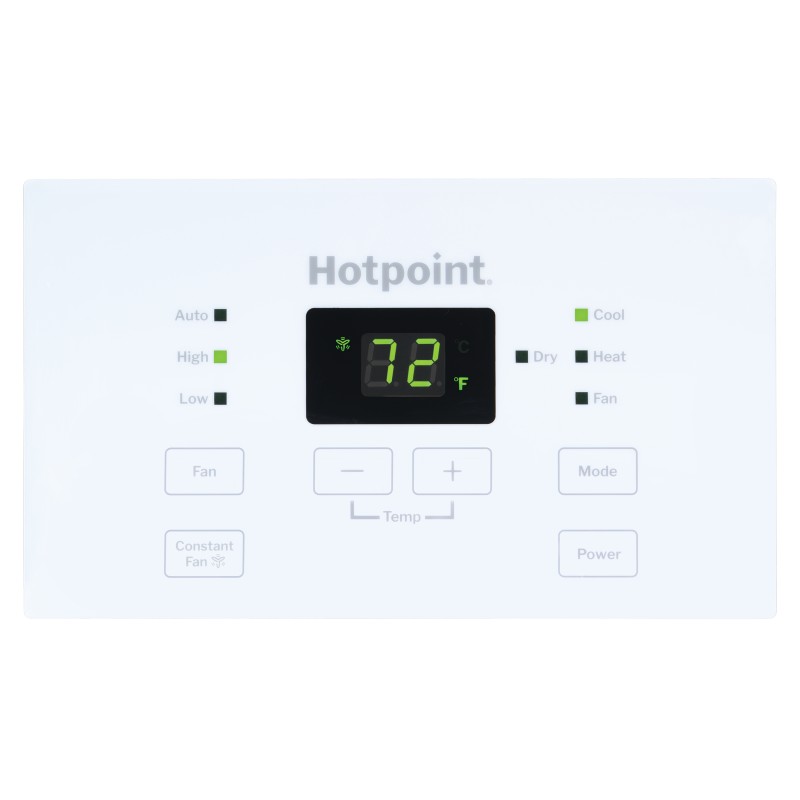

- Intuitive display Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
- Power cord (LCDI) included Hotpoint PTACs come with everything needed for a quick and easy installation
- Remote thermostat compatibility
- Works with central desk control systems
- Heatpump models include staged heating
- Tangential fan for air flow and smooth sound
- Energy-efficient heat pump models available
FEATURES
- Control Type : Electronic
- Product Type : Packaged Terminal Air Conditioners (PTAC)
- Refrigerant Type : R32
- Temperature Range : 62 - 80 F
- 3 Cooling
- 3 Fan Only
- 3 Heating
- Auto Power Recovery
- Automatic Emergency Heat
- Automatic Indoor Frost Control
- Central Desk Control Compatibility
- Freeze Sentinel
- Heat Pump with Resistance Heat Backup
- Power Cord (LCDI) included
- Remote Thermostat Compatibility

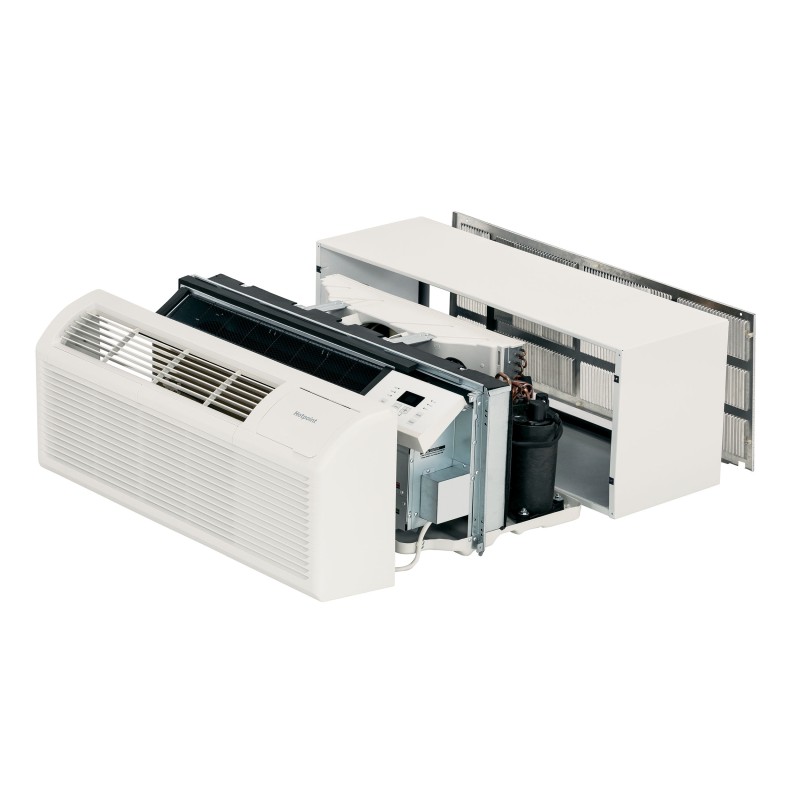

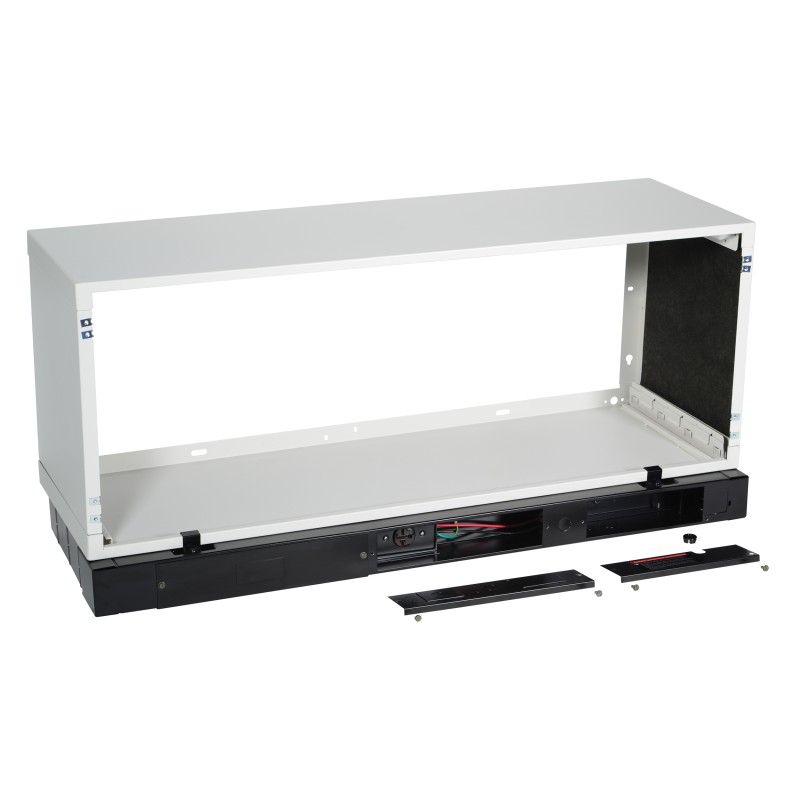

Chassis Type : Slide-In
Heat - Cool : Yes
Heat Pump : Yes
Heating - Reverse Cycle - COP : 3.4
Manual Vent Control : Hidden
Outdoor Vent / Exhaust : Yes
Rotary Compressor : Yes
Venting Features :
- Concealed Manual Vent Control

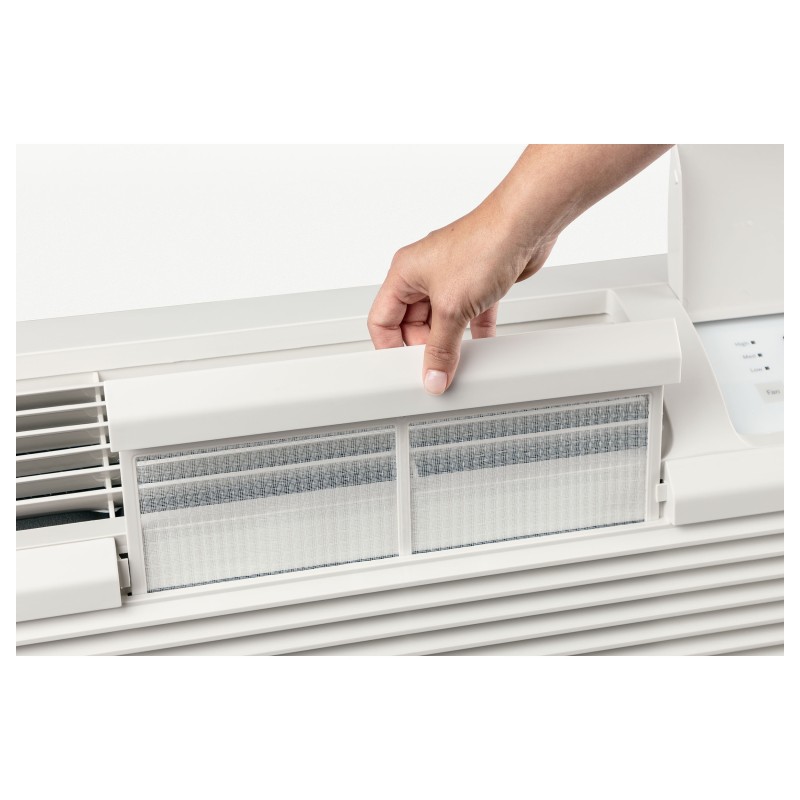

- Vent Air Filter
"SmartFan" Fan Cycle : Yes
Discharge Grille : 2-position
Fan Motor : 2
Heating System : Heat Pump with Resistance Backup
CAPACITY
- CFM Indoor Fan High : 335
- Cooling EER (BTUH / Watt) : 11.9
- Heating - Reverse Cycle - BTUH : 6000/5800
- CFM Indoor Fan Low : 240
- CFM Indoor Fan Medium : 281
- Cooling BTUH (MAX) : 7200.0 Btu
- Cooling BTUH (MIN) : 6800.0 Btu
APPEARANCE
- Installation : Through-the-Wall
- Color Appearance : White
- WEIGHTS & DIMENSIONS
- Overall Depth : 20 9/10 in
- Overall Height : 16 in
- Overall Width : 42 2/5 in
- Approximate Shipping Weight : 115 1/2 lb
- Net Weight : 104 7/10 lb
POWER / RATINGS
- Heating - Electric - Heater Watts : 3535/2900
- Heating - Electric - Heater Amps : 15.3/13.7
- Heating - Reverse Cycle - Amps : 2.22/2.38
- Heating - Reverse Cycle - Watts : 515/500
- Cooling - Amperes; F.L. - Cooling : 2.7/2.8
- Cooling - Watts : 605/570
- Cooling - Amperes : 2.4/2.6
- Voltage (MAX) : 230.0 V
- Voltage (MIN) : 208.0 V
CLAIMS & CERTIFICATIONS
- 208.0 V
WARRANTY
Labor Warranty :
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
- Limited 1-year entire appliance
- Limited 5-year sealed refrigerating system
