The most advanced PTAC ever. Inverter compressor delivers best-in-class efficiencies with ultra-quiet operation. Friedrich's award-winning and patented FreshAire system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Friedrich's FreshAire PTAC also boasts the highest STC ratings in the industry amongst PTACs with make-up air. The widest cooling and heating range in the industry with only 2 models. (9,000 and 12,000 Btu)

Specifications By Model :Model : PVH09K3FB

• Operation : Cool/Heat Pump/Inverter
• Cooling BTU : 9600/9400
• Cooling Range : 6462 - 12099
• Reverse Heating BTU : 8200/8500
• Voltage : 230/208
• EER : 12.1/12.1
• COP @ 47°F : 3.51/3.51
• Cooling Area (Sq Ft.) : 400-450

Model : PVH12K3FB

• Operation : Cool/Heat Pump/Inverter
• Cooling BTU : 12000/11800
• Cooling Range : 7929 - 17142
• Reverse Heating BTU : 11600/11800
• Voltage : 230/208
• EER : 11.5/11.5
• COP @ 47°F : 3.57/3.58
• Cooling Area (Sq Ft.) : 450-550

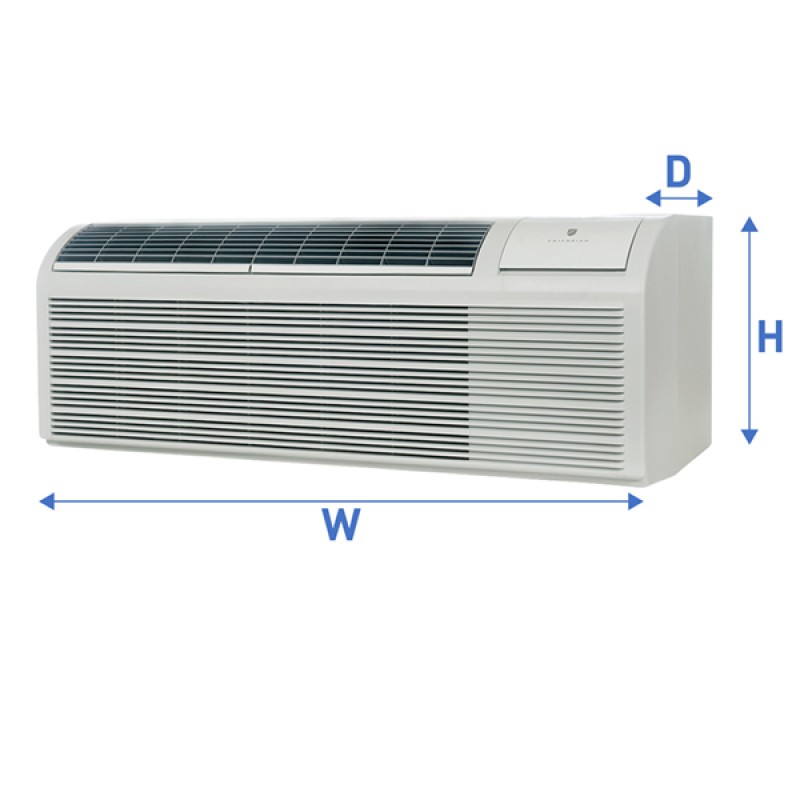

Chassis Sizes for this Product :

• H: 16“ x W: 42“ x D: 21”
• FreshAire PTAC Model Dimensions

Features :Conditioned Fresh Air : Friedrich’s FreshAire PTAC system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optimize temperature and humidity level of incoming air.

Precision Inverter® Technology : Precision Inverter® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent. Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort and lower energy consumption.

Widest Cooling & Heating Range in the Industry : Variable speed technology gives you the flexibility of a full line of PTACs with only two models, and offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.

The Smoothest PTAC Sound Available : The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room. This not only provides the best energy consumption curve but it also adds to guest comfort by eliminating the harsh start-ups associated with single speed compressors.

Comfort & Convenience : Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Maintenance and Installation : Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System® securely attaches the front each time. Unit may be installed low to the floor.
