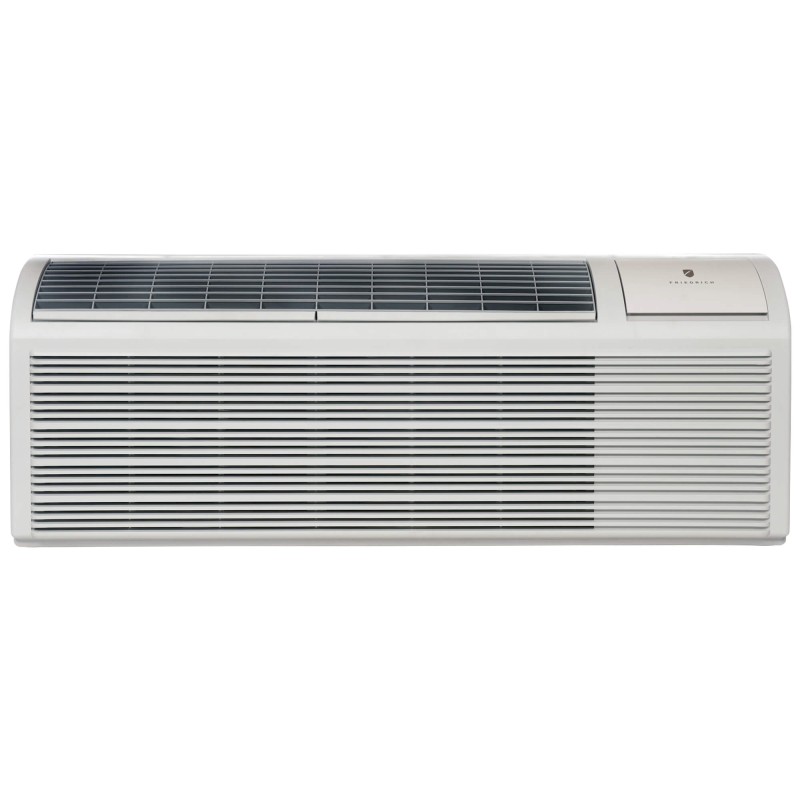

ZoneAire Premier Package Terminal Air Conditioner

Product Code: 15000 Btu
Stock In Stock
$0.00

Product Description


Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.

Specifications By Model :Model : PDE07K3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 7200/7000
  • Reverse Heating BTU : -
  • Voltage : 230/208
  • EER : 13.0/13.0
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 250-300


Model : PDE07R3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 7200
  • Reverse Heating BTU : -
  • Voltage : 265
  • EER : 13.0
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 250-300


Model : PDE09K3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 9400/9200
  • Reverse Heating BTU : -
  • Voltage : 230/208
  • EER : 12.1/12.1
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 350–400


Model : PDE09R3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 9400
  • Reverse Heating BTU : -
  • Voltage : 265
  • EER : 12.1
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 350–400


Model : PDE12K3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 11800/11600
  • Reverse Heating BTU : -
  • Voltage : 230/208
  • EER : 11.6/11.6
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 450-550


Model : PDE12R3SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 11800
  • Reverse Heating BTU : -
  • Voltage : 265
  • EER : 11.6
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 450-550


Model : PDE15K5SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 14500/14200
  • Reverse Heating BTU : -
  • Voltage : 230/208
  • EER : 10.4/10.4
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 550-650


Model : PDE15R5SG

  • Operation : Cool/Elect. Heat
  • Cooling BTU : 14500
  • Reverse Heating BTU : -
  • Voltage : 265
  • EER : 10.4
  • COP @ 47°F : -
  • Cooling Area (Sq Ft.) : 550-650


Model : PDH07K3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 7200/7000
  • Reverse Heating BTU : 6000/5800
  • Voltage : 230/208
  • EER : 13.0/13.0
  • COP @ 47°F : 3.6/3.6
  • Cooling Area (Sq Ft.) : 250-300


Model : PDH07R3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 7200
  • Reverse Heating BTU : 6000
  • Voltage : 265
  • EER : 13.0
  • COP @ 47°F : 3.6
  • Cooling Area (Sq Ft.) : 250-300


Model : PDH09K3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 9400/9200
  • Reverse Heating BTU : 8300/8100
  • Voltage : 230/208
  • EER : 12.1/12.1
  • COP @ 47°F : 3.5/3.5
  • Cooling Area (Sq Ft.) : 350–400


Model : PDH09R3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 9400
  • Reverse Heating BTU : 8300
  • Voltage : 265
  • EER : 12.1
  • COP @ 47°F : 3.5
  • Cooling Area (Sq Ft.) : 350–400


Model : PDH12K3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 11800/11600
  • Reverse Heating BTU : 10600/10400
  • Voltage : 230/208
  • EER : 11.6/11.6
  • COP @ 47°F : 3.4/3.4
  • Cooling Area (Sq Ft.) : 450-550


Model : PDH12R3SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 11800
  • Reverse Heating BTU : 10600
  • Voltage : 265
  • EER : 11.6
  • COP @ 47°F : 3.4
  • Cooling Area (Sq Ft.) : 450-550


Model : PDH15K5SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 14500/14200
  • Reverse Heating BTU : 13300/13000
  • Voltage : 230/208
  • EER : 10.4/10.4
  • COP @ 47°F : 3.1/3.1
  • Cooling Area (Sq Ft.) : 550-650


Model : PDH15R5SG

  • Operation : Cool/Heat Pump
  • Cooling BTU : 14500
  • Reverse Heating BTU : 13300
  • Voltage : 265
  • EER : 10.4
  • COP @ 47°F : 3.1
  • Cooling Area (Sq Ft.) : 550-650

 Chassis Sizes for this Product :

  • H: 16“ x W: 42“ x D: 21 1⁄2”
  • FreshAire PTAC Model Dimensions
  • Applies to model #’s : PDE07K, PDE07R, PDE09K, PDE09R, PDE12K, PDE12R, PDE15K, PDE15R, PDH07K, PDH07R, PDH09K, PDH09R, PDH12K, PDH12R, PDH15K, PDH15R


Features :

Durable Construction : Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil.

Energy Efficiency : Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.

Comfort & Convenience : Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Sound Reduction Technology : Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.

Warranty & Support : Friedrich’s industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.

Maintenance and Installation : Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System® securely attaches the front each time. Unit may be installed low to the floor.
